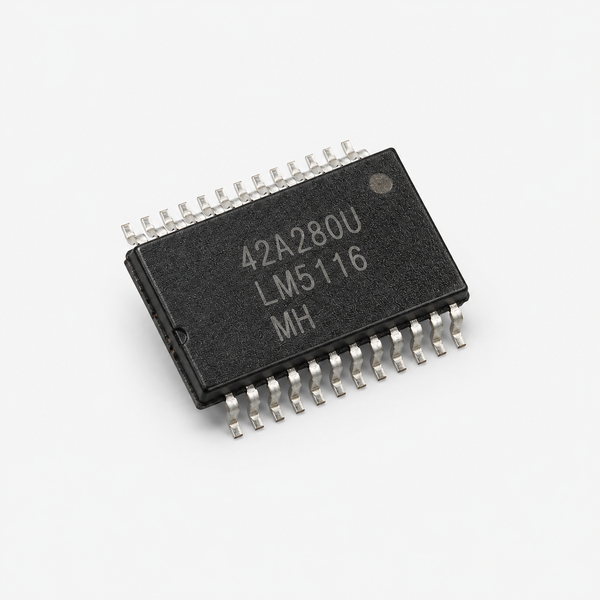

LM5116 Wide Range Synchronous Buck Controller IC - HTSSOP-20 Package

LM5116 Wide Range Synchronous Buck Controller IC (HTSSOP-20) is a high-voltage synchronous buck controller from Texas Instruments designed for efficient DC-DC step-down power supplies operating from a wide input voltage range of 6V to 100V. It uses emulated peak current mode control for excellent line regulation, cycle-by-cycle current limiting, and easy loop compensation. The controller drives external high-side and low-side N-channel MOSFETs, making it suitable for high-power industrial, automotive, and telecom applications. It supports switching frequencies from 50kHz to 1MHz and integrates programmable soft-start, programmable current limit, thermal shutdown, and undervoltage lockout for reliable operation.LM5116 Wide Range Synchronous Buck Controller IC DatasheetFeaturesWide Input Voltage Range: 6V to 100VEmulated Peak Current Mode ControlSynchronous Buck ControllerDrives External High-side and Low-side N-Channel MOSFETs3.5A Peak Gate Drive CapabilityAdjustable Output Voltage from 1.215V to 80VProgrammable Switching Frequency (50kHz to 1MHz)Precision 1.215V Feedback Reference (±1.5%)Programmable Soft-StartProgrammable Current LimitProgrammable Line Undervoltage Lockout (UVLO)Optional Diode Emulation Mode for Improved Light Load EfficiencyAutomatic Switch to External Bias Supply (VCCX)Frequency Synchronization CapabilityLow Shutdown Current (<10µA)Thermal Shutdown ProtectionHTSSOP-20 Package with Exposed Thermal PadSpecificationsParameterSpecificationProduct TypeWide Range Synchronous Buck ControllerManufacturerTexas InstrumentsPart NumberLM5116TopologySynchronous Buck ControllerInput Voltage Range6V to 100VMaximum Input Voltage100VOutput Voltage1.215V to 80V (Programmable)Feedback Reference Voltage1.215V ±1.5%Switching Frequency50kHz to 1MHzTypical Oscillator Frequency200kHz (RT = 16kΩ)Gate Drive Peak Source Current1A (High Side), 1.8A (Low Side)Gate Drive Peak Sink Current2.2A (High Side), 3.5A (Low Side)Shutdown CurrentLess than 10µAVCC Regulation7.4V TypicalSoft StartProgrammableCurrent LimitProgrammable, Cycle-by-CycleEnable Threshold3.3V (Typical)UVLO Threshold1.215V TypicalOperating Junction Temperature-40°C to +125°CThermal Shutdown170°C TypicalPackageHTSSOP-20 with Exposed PadMounting TypeSurface Mount (SMD)ApplicationsAutomotive Infotainment SystemsAutomotive USB ChargersIndustrial DC-DC ConvertersIndustrial Motor DriversTelecom ServersHigh Voltage Buck Power SuppliesBattery Powered EquipmentDistributed Power SystemsEmbedded Power ModulesIndustrial Automation EquipmentAlso Check These IC:-AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes1 × LM5116 Wide Range Synchronous Buck Controller IC (HTSSOP-20)

INR 148 · In stock
