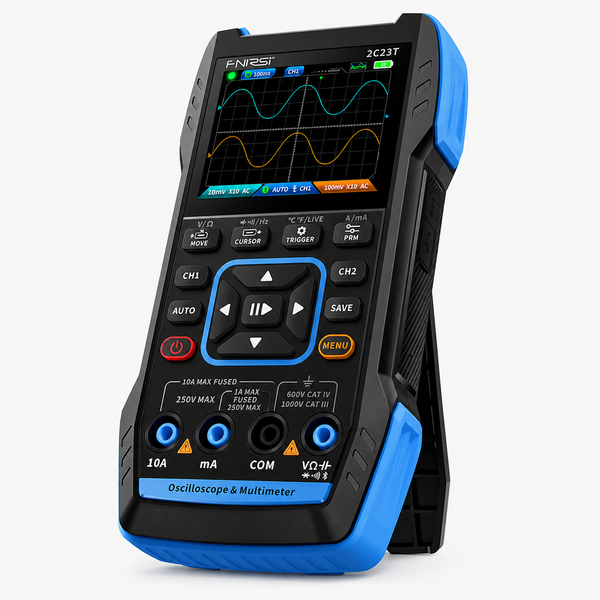

FNIRSI® 2C23T Plus Handheld Dual Channel 3-in-1 10MHz 50MS/s Oscilloscope Multimeter DDS Function Generator

FNIRSI® 2C23T Handheld Dual Channel 3-in-1 10MHz 50MS/s Oscilloscope Multimeter DDS Function Generator is a versatile 3-in-1 handheld test instrument that combines a dual-channel digital oscilloscope, True RMS digital multimeter, and DDS function generator into a compact portable device. Built on an FPGA + MCU + ADC hardware architecture, it delivers reliable waveform analysis, accurate electrical measurements, and signal generation for troubleshooting, maintenance, education, and embedded system development. The 2.8-inch HD color display, built-in 3000mAh rechargeable battery, waveform storage, screenshot export, and high-voltage protection make it an ideal tool for professionals, students, and electronics enthusiasts.FNIRSI® 2C23T Handheld Dual Channel 3-in-1 10MHz 50MS/s DatasheetFeatures:Dual-Channel 10MHz Digital Oscilloscope50MS/s Real-Time Sampling RateBuilt-in True RMS Digital MultimeterDDS Function Generator up to 2MHz7 Built-in Waveform OutputsWaveform Save & Screenshot ExportReference Waveform ComparisonFPGA + MCU + ADC Hardware ArchitectureBuilt-in High Voltage Protection2.8-inch HD Color Display3000mAh Rechargeable Lithium BatteryUSB Type-C Charging & Data ExportBasic SpecificationsParameterValueBrandFNIRSI®Model2C23TProduct Type3-in-1 Oscilloscope + Multimeter + Signal GeneratorDisplay2.8-inch HD Color LCDResolution320 × 240 PixelsLanguageEnglishBattery3000mAh Lithium BatteryCharging InterfaceUSB Type-CCharging Specification5V / 1AStandby TimeUp to 6 HoursProduct Dimensions167 × 89 × 35mmWeight300g Oscilloscope SpecificationsParameterValueChannelsDual ChannelReal-Time Sampling Rate50MS/sAnalog Bandwidth10MHz (Independent on Both Channels)Storage Depth32KBInput Impedance1MΩVertical Sensitivity20mV/div ~ 10V/div (X1)Time Base Range50ns/div ~ 10s/divMaximum Input Voltage±400VCouplingAC / DCTrigger ModesAuto / Normal / SingleTrigger TypeRising Edge / Falling EdgeDisplay ModeYT / ScrollAutomatic MeasurementSupportedWaveform ScreenshotSupportedWaveform ExportSupportedWaveform StorageSupported Digital Multimeter SpecificationsParameterValueDisplay Count10,000 Counts (4 Digit)Measurement TypeTrue RMSDC Voltage9.999V / 99.99V / 999.9VDC Voltage Accuracy±(0.5% + 3)AC Voltage9.999V / 99.99V / 750VAC Voltage Accuracy±(1% + 3)DC Current9999μA / 99.99mA / 999.9mA / 9.999ADC Current Accuracy±(1.2% + 3)AC Current9999μA / 99.99mA / 999.9mA / 9.999AAC Current Accuracy±(1.5% + 3)Resistance999.9Ω ~ 99.99MΩResistance Accuracy±(0.5% + 3) to ±(1.5% + 3)Capacitance9.999nF ~ 99.99mFCapacitance Accuracy±(2.0% + 5) to ±(5.0% + 20)Temperature-55°C ~ 1300°C (-67°F ~ 2372°F)Temperature Accuracy±(2.5% + 5)Diode TestSupportedContinuity TestSupportedLive Wire DetectionSupported DDS Signal Generator SpecificationsParameterValueOutput Channels1Frequency Range1Hz ~ 2MHzOutput Amplitude0.1V ~ 3.3VDuty Cycle0% ~ 100%Output WaveformsSine, Square, Triangle, Full Wave, Half Wave, Noise, DC Output Display & User InterfaceParameterValueDisplay Size2.8 InchesDisplay Resolution320 × 240 PixelsWaveform SaveSupportedScreenshot SaveSupportedScreenshot ExportSupportedReference Waveform DisplaySupportedMeasured Waveform ComparisonSupported Battery & Power SpecificationsParameterValueBattery TypeRechargeable Lithium BatteryBattery Capacity3000mAhCharging InterfaceUSB Type-CCharging Voltage5VCharging Current1AStandby TimeUp to 6 Hours Physical SpecificationsParameterValueDimensions167 × 89 × 35mmWeight300gConstructionPortable Handheld Unit Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.Also Check These Products:-FNIRSI HRM-10 Battery Voltage Internal Resistance TesterFNIRSI LCR-P1 Multifunction Transistor Capacitor TesterFNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR TesterFNIRSI DMC-100 DC AC Current Voltage Digital Clamp MultimeterFNIRSI DMT-99 Intelligent Color Screen Digital MultiMeterPackage Includes:1 x FNIRSI® 2C23T Handheld Dual Channel 3-in-1 10MHz 50MS/s Oscilloscope Multimeter DDS Function Generator
