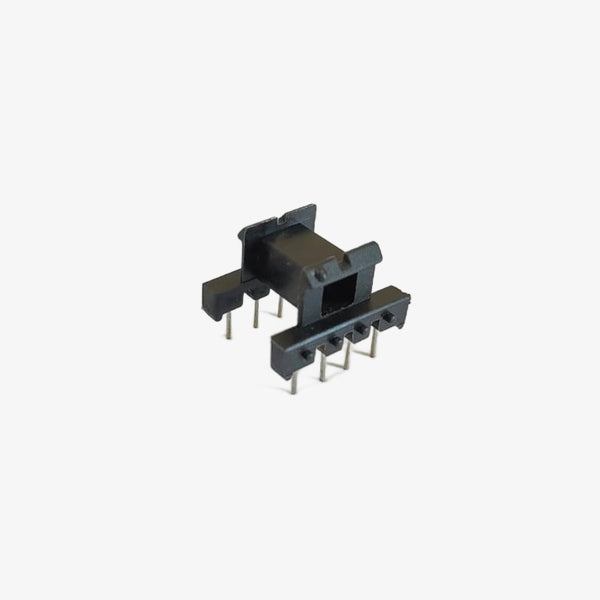

EE20 Transformer Horizontal Bobbin 8 Pin

The EE20 Transformer Horizontal Bobbin with 8 pins is specifically designed for use with EE20 ferrite cores in high-frequency transformer and inductor applications. Its horizontal design ensures a compact and low-profile form factor, making it ideal for space-constrained electronics. The bobbin allows for organized and efficient coil winding, simplifying the transformer assembly process and enhancing electrical performance.Features:Horizontal design for compact, low-profile transformer assemblies8-pin configuration for efficient and organized coil windingMade from durable, heat-resistant plastic for long-lasting performanceIdeal for high-frequency applications with EE20 ferrite coresEasy to assemble, improving productivity in manufacturingApplications:Switched-mode power supplies (SMPS)High-frequency transformers and inductorsPower converters and invertersConsumer electronics and industrial equipmentCustom transformer and inductor manufacturingSpecifications:Bobbin Type: EE20Pin Count: 8Mounting Style: HorizontalMaterial: High-quality, heat-resistant plasticCore Compatibility: EE20 ferrite cores

INR 8 · In stock
