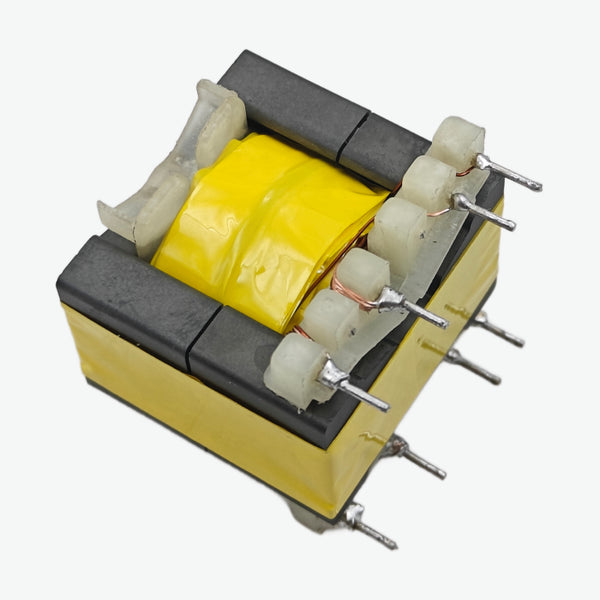

PQ3230 SMPS High Frequency 150W Transformer with Auxiliary Windings

The PQ3230 SMPS High Frequency 150W Transformer is designed for reliable and efficient power conversion in switch-mode power supplies. Constructed with a high-quality MnZn ferrite core and precision copper windings, it delivers high performance across a wide frequency range while maintaining excellent thermal stability. With auxiliary bias windings, robust 8-pin through-hole mounting, and a compact yet durable design, this transformer is well-suited for high-power isolated converters, industrial SMPS systems, and other demanding applications.Features of PQ3230 SMPS High Frequency 150W Transformer:Supports power delivery up to 150 Watts.Wide operating frequency range from 20kHz to 500kHz.Includes primary and secondary auxiliary bias windings for enhanced circuit flexibility.High-grade copper windings ensure efficient energy transfer and reduced losses.Rugged through-hole design for stable PCB mounting.Specifications of PQ3230 SMPS High Frequency 150W Transformer:Model Number: PQ3230Core Material: MnZn (Manganese-Zinc) FerritePhase: SinglePower Rating: 150 WattsMax Secondary Current Draw: 6APrimary Winding: ~400mH, (18+18) Turns, 6 × 0.3mm wirePrimary Bias Winding: 5 Turns, 1 × 0.3mm wireSecondary Winding: 8 Turns, 5 × 0.5mm wireSecondary Bias Winding: 5 Turns, 2 × 0.3mm wireWorking Frequency: 20kHz ~ 500kHzWinding Material: High-Grade CopperTemperature Range: -15°C to +105°CNo. of Poles: 8 PinMounting Style: Through HoleDimensions (L×B×H): 35mm × 32mm × 31mmWeight: 78.5gPackage Includes:1 × PQ3230 SMPS High Frequency 150W Transformer with Auxiliary Windings
