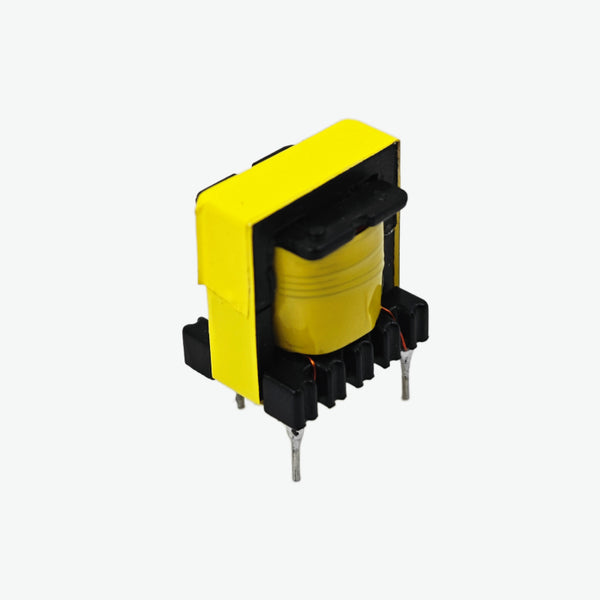

EE16 SMPS High Frequency 10 Watt PCB Mount Transformer

The EE16 High-Frequency SMPS Transformer is a compact and efficient transformer designed for use in switch-mode power supplies (SMPS) with power ratings up to 10 watts. Built with a PC40 core and high-grade copper windings, it offers reliable isolation and stable voltage conversion. Its wide operating frequency range makes it suitable for a variety of applications in AC-DC or DC-DC converters, adapters, and power modules.Features of EE16 SMPS 10W Transformer:EE16 core with PC40 ferrite material for minimal core lossesSuitable for 10W power supply circuitsWide working frequency range: 20kHz to 500kHzTurns ratio of 90:11 for effective voltage step-down or step-upHigh-grade copper windings for improved conductivity and durabilityCompact design ideal for PCB mountingThrough-hole mounting for secure placementCapable of withstanding temperature extremes from -15°C to +105°CSpecifications of EE16 SMPS 10W Transformer:Model Number: EE16Core Material: PC44Phase: SinglePower Rating: 10 WattsPrimary Inductance: ~1.0mHTurns Ratio: 90:11Working Frequency: 20kHz ~ 500kHzWinding Material: High-Grade CopperTemperature Range: -15°C to +105°CNo. of Poles: 5 PinMounting Style: Through HoleDimensions(L×B×H): 16.3 x 12.5 x 19 mm Note: It is a switching power supply power transformer and can not be used directly with 220V 50Hz. Direct connection with 50Hz AC will burn the transformer.Package Includes:1 × EE16 SMPS High Frequency 10 Watt PCB Mount Transformer

INR 35 · In stock
