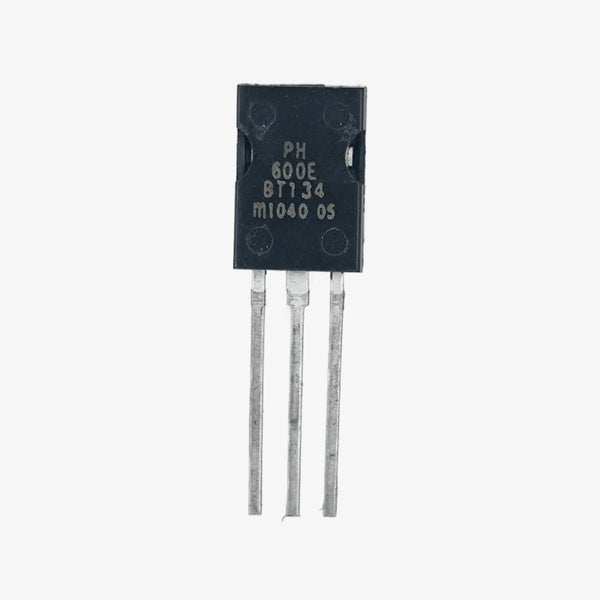

BT134 600V 4A TRIAC Thyristor - TO-220 DIP Package

The BT134 600V 4A TRIAC Thyristor - TO-220 Package is a reliable through-hole device designed for AC switching and control applications. It offers high surge capability, excellent commutation performance, and stable operation in all four quadrants. Ideal for motor speed controllers, light dimmers, solid-state relays, and general AC load regulation circuits.CLICK HERE FOR DATASHEETFeatures:High surge current tolerance for robust switchingExcellent commutation and stability in all four quadrantsCompact and thermally efficient TO-220 packageLow gate trigger current for easy controlSuitable for inductive and resistive AC loadsSpecifications:Repetitive Peak Off-State Voltage (VDRM): 600VRepetitive Peak Reverse Voltage (VRRM): 600VRMS On-State Current (IT(RMS)): 4ANon-Repetitive Surge Peak Current (ITSM): 25A (50Hz full cycle)Gate Trigger Current (IGT): 10mA (max, Quadrants I–III)Gate Trigger Voltage (VGT): 1.3V (max)Holding Current (IH): 15mA (max)Latching Current (IL): 15mA (max)On-State Voltage (VTM) at 6A: 1.55V Thermal Resistance Junction-to-Case (RθJC): 3°C/WOperating Junction Temperature (TJ): -40°C to +125°CStorage Temperature (TSTG): -40°C to +150°CPackage Includes:1 × BT134 600V 4A TRIAC Thyristor - TO-220 Package

INR 9 · In stock
