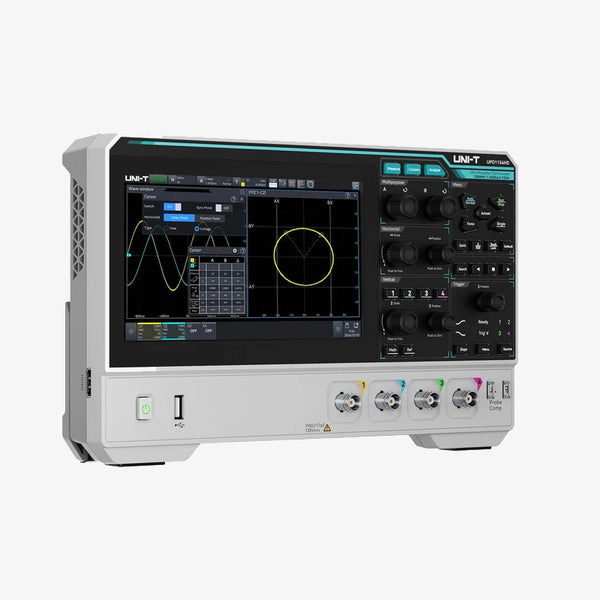

UNI-T UPO1154HD 4Ch 12-Bit Digital Storage Oscilloscope - 150 MHz

UNI-T UPO1154HD 4Ch 12-Bit Digital Storage Oscilloscope - 150MHz is a professional high-resolution oscilloscope designed for advanced electronics development, power electronics analysis, embedded systems debugging, protocol decoding, and laboratory applications. Built on UNI-T's R12™ native 12-bit architecture, it delivers exceptional waveform detail with 4096 vertical levels, 1.25GSa/s sampling rate, 100Mpts memory depth, and comprehensive analysis tools for demanding measurement tasks.UNI-T UPO1154HD 4Ch 12-Bit Digital Storage Oscilloscope - 150 MHz DatasheetFeatures:Native 12-Bit R12™ ADC Architecture150MHz Bandwidth with 4 Analog Channels1.25GSa/s Real-Time Sampling Rate100Mpts Deep Memory AcquisitionUltra Phosphor 3.0 Display TechnologyUp to 500,000 Waveforms per Second Capture Rate7-Inch Capacitive Multi-Touch DisplayBuilt-In Power Analysis Functions5 Standard Protocol Decoders IncludedEnhanced FFT Analysis up to 1Mpts56 Automated Measurement FunctionsZone Trigger and Advanced Trigger ModesHardware DVM and Frequency CounterUSB-C Power Bank Operation SupportSCPI Remote Control and WebServer AccessVESA Mount Compatible DesignSpecifications:ParameterValueBrandUNI-TModelUPO1154HDProduct TypeDigital Storage OscilloscopeChannels4 Analog ChannelsBandwidth150 MHzVertical ResolutionNative 12-bit (R12™ Architecture)Sample Rate (1 Channel)1.25 GSa/sSample Rate (2 Channels)625 MSa/sSample Rate (4 Channels)312.5 MSa/sMemory Depth100 MptsCapture RateUp to 500,000 wfms/sRise Time≤ 2.2 nsBackground Noise60 µVrms (Typical)Vertical Scale500 µV/div to 10 V/divTime Base Range5 ns/div to 1 ks/divDisplay Size7 InchDisplay Resolution1024 × 600Display TypeCapacitive Multi-Touch ScreenADC Resolution12 BitPower Consumption65 W MaxOperating Temperature0°C to +40°CMounting StandardVESA 100 × 100 mmDimensions282 × 175 × 49 mmWeight1.56 kgCertificationsCE, cETLusTrigger Specifications:ParameterValueTrigger ModesEdge, Pulse Width, Video, Runt, Slope, Delay, Timeout, Duration, Setup & Hold, Nth Edge, Code Pattern, ZoneZone TriggerSupportedSequence ModeUp to 500,000 FramesHardware RecordingUp to 100,000 FramesProtocol Decoding:ParameterValueUART / RS-232SupportedI²CSupportedSPISupportedCANSupportedLINSupportedSimultaneous DecodingUp to 4 Decode WindowsAnalysis & Measurement Functions:ParameterValueAutomated Measurements56 TypesSimultaneous MeasurementsUp to 21FFT AnalysisEnhanced FFT up to 1 MptsFFT FeaturesWaterfall, Marker List, 4 TracesPower Analysis Functions12 TypesDVM4-Digit (DC, AC RMS, AC+DC RMS)Frequency Counter6-Digit Hardware CounterStatisticsMean, Max, Min, Standard DeviationHistogramsSupportedTrend ChartsSupportedInterface & Connectivity:ParameterValueUSB HostYesUSB DeviceYesLANVXI-11 SupportedHDMI OutputYesAUX OutputTrigger Out / Pass-Fail / DVMRemote ControlSCPIWebServerBuilt-InUSB-C PD Power Input≥12V / 3A Supported If you are looking for more UNI-T products like Oscilloscope Multimeters visit the collection of products for your electronic projects.Also Check These Out:-DMT-99 Intelligent Color Screen Digital MultiMeter2C53T 50MHz Handheld 3-in-1 Oscilloscope Multimeter Signal GeneratorDSO-TC3 3-in-1 Handheld 500KHz 10MS/s Digital OscilloscopesPackage Includes:1 x UNI-T UPO1154HD 4Ch 12-Bit Digital Storage Oscilloscope - 150MHz1 x Power Adapter1 x USB Cable1 x User Manual

Check price on store · Out of stock
