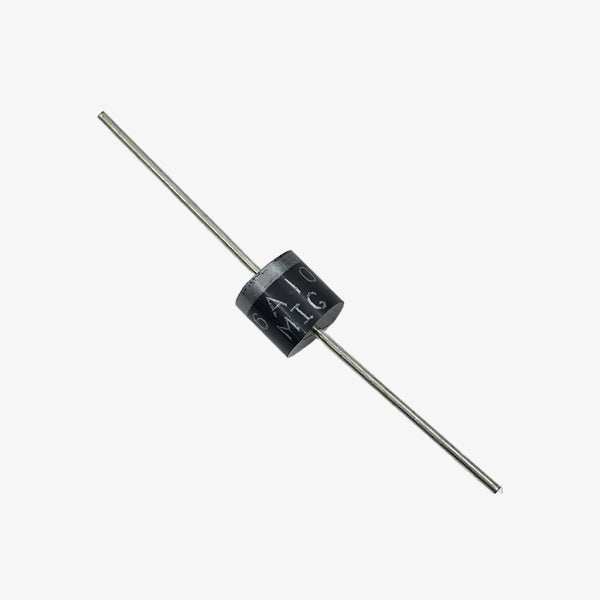

6A10 General Purpose Silicon Rectifier Diode 6A

The 6A10 General Purpose Silicon Rectifier Diode 6A is built for high-capacity AC to DC rectification in demanding power circuits. Its robust R-6 molded package ensures strong thermal endurance during continuous operation. Ideal for adapters, SMPS stages, chargers, and general high-current rectifier applications.CLICK HERE FOR DATASHEETFeatures:Handles heavy 6A rectification for high-load power conversionMaintains efficient conduction with low forward voltage characteristicsR-6 molded body offers superior mechanical and thermal durabilityManufactured with flame-retardant 94V-0 materials for enhanced safetySpecifications:Maximum Peak Reverse Voltage (VRRM): 1000 VMaximum RMS Voltage: 700 VMaximum DC Blocking Voltage (VDC): 1000 VAverage Forward Rectified Current (IAV): 6.0 APeak Forward Surge Current (IFSM): 400 AInstantaneous Forward Voltage at 6A (VF): 0.90 VReverse Current at 25°C (IR): 10 µAReverse Current at 100°C (IR): 100 µAMoisture Sensitivity Level: MSL 1Package Includes:1 × 6A10 General Purpose Silicon Rectifier Diode 6A

INR 8 · In stock
