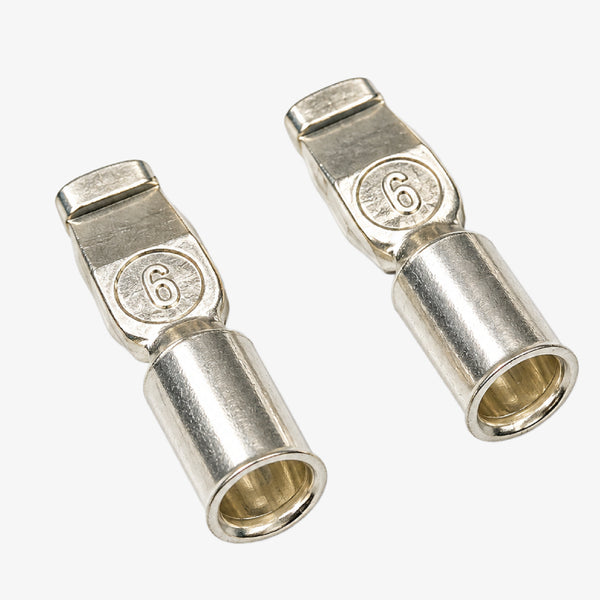

SB50 Anderson Connector 2 Pin Set - Thimble Pins Only

SB50 Anderson Connector 2 Pin Set - Thimble Only Pins is a set of two high-current metal contact pins designed for use with compatible SB50 Anderson connector housings. These contacts feature a copper body with silver plating and are designed for crimping onto 6 AWG wire. The product includes only the two metal contact pins shown in the image; the plastic connector housing is not included.Features:SB50 compatible contact pins.2 metal contact pins included.Copper construction with silver plating.High-mating-force contact design.Designed for 6 AWG wire.Crimp-type wire termination.Suitable for high-current DC power connections.Designed for use with SB50 connector housings.Suitable for battery packs, inverters, chargers, solar systems, EVs, and robotics.Connector housing is not included.Specifications:ParameterValueProduct TypeSB50 Contact / Thimble PinCompatible ConnectorSB50Contact Part Number5900Quantity2 PinsContact TypeWire ContactContact GenderPinContact MaterialCopperContact PlatingSilverCompatible Wire Size6 AWGWire Cross-Section13.3mm²Termination MethodCrimpContact Diameter5.59mmMating ForceHighMating CyclesUp to 10,000Maximum Operating Temperature105°CMinimum Operating Temperature-20°CConnector HousingNot IncludedApplicationBattery, Inverter, Charger, Solar, EV, Robotics, DC PowerAlso Check These Products:-SB50 Anderson Connector Set - 600V and 50A - Grey Connector - 6 ThimblePackage Includes:2 x SB50 Anderson Connector Metal Thimble / Contact Pins

INR 42 · In stock
