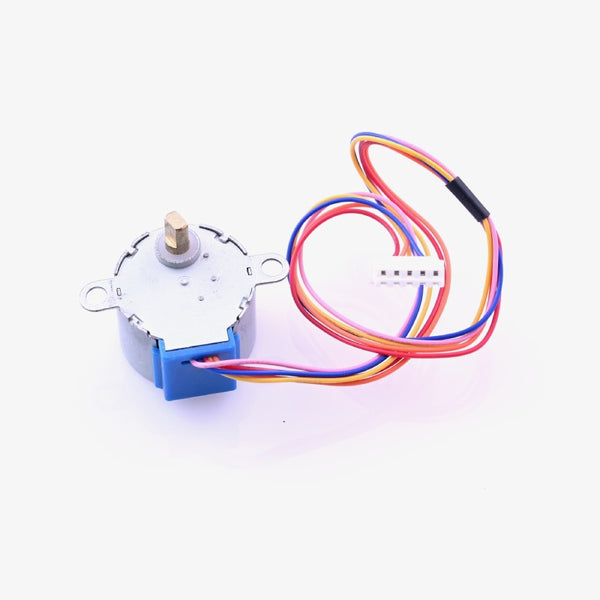

28BYJ-48 Stepper Motor

Stepper motor is used for precision level controlling. The 28BYJ motor is a very common stepper motor and this can be used in various types of applications where precision control is required. The specification consists of 5V operating voltage and has a step angle of 5.625 degrees. Thus, 64 steps make 360 degrees of complete rotation of the motor. The friction torque and pull in torque of the motor is 1200 gf.cm and 300 gf.cm respectively.As this is a four-phase motor, it has five output wires and can be driven with a ULN2003 driver board. A complete set of this stepper motor with an ULN2003 board is also available in quartz components. It operates on 5V and has a step angle of 5.625 degrees, meaning it has to make 64 steps to complete one rotation.The connector has 2.54” spacing. 28BYJ-48 Quick Pinout:28BYJ-48 Quick Specification:Specification :Diameter of the motor: 28mmOperational Voltage: DC 5VDC resistance of the winding： 50Ω±7% (25℃)Diameter: 25mmStep Angle: 5.625 x 1/64Reduction Ratio: 1/64Rated voltage of the motor： 5VDCNumber of Phases ： 4Speed Variation Ratio ： 1/64Stride Angle ：625° /64Frequency: 100HzIdle In-traction Frequency: > 600HzIdle Out-traction Frequency: > 1000HzIn-traction Torque >34. 3mN.m(120Hz)Self-positioning Torque >34. 3mN.mFriction torque: 600-1200 gf.cmPull in torque: 300 gf.cmInsulated resistance >10MΩ(500V)Insulated electricity power ：600VAC/1mA/1sInsulation grade ：ARise in Temperature <40K (120HzNoise <35dB (120Hz, No load,10cm)Model ： 28BYJ-48 28BYJ-48 Applications:RoboticHigh Load controlSteps control in mini automotive grade projectsAny Stepper Motor related applications28BYJ-48 Dimension and footprint: Example Projects on 28BYJ-48:Interfacing 28BYJ-48 with ARM7-LPC2148Additional Resources:28BYJ-48 Datasheet

INR 79 · In stock
