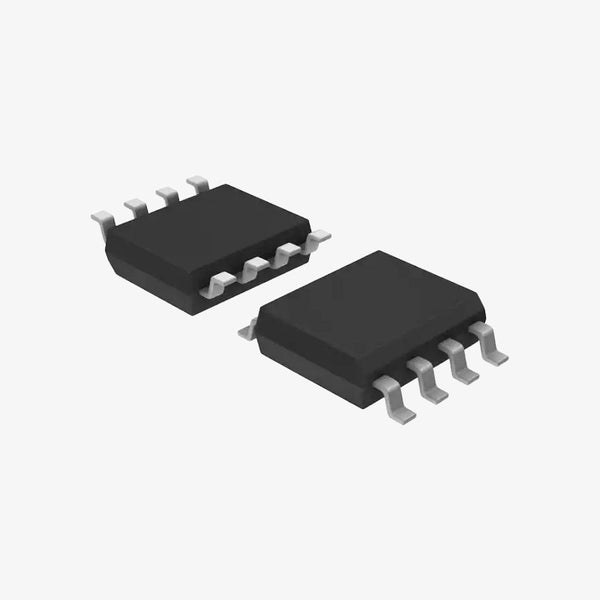

MAX3485ESA-HLF-RS485/RS422 Transceiver IC SOP-8 Package

MAX3485ESA-HLF-RS485/RS422 Transceiver IC SOP-8 Packagee is a low-power, 3.3 V half-duplex RS-485/RS-422 transceiver designed for reliable differential data communication. It integrates one driver and one receiver, supports data rates up to 10 Mbps, and operates from a single 3.3 V supply. With a wide common-mode input range, current limiting, thermal shutdown, and low-power shutdown mode, it is suitable for industrial communication, automation, embedded systems, and long-distance serial data transmission.Features:Half-duplex RS-485 and RS-422 transceiver.Single 3.3 V supply operation.Data rates up to 10 Mbps.One driver and one receiver.Interoperable with 5 V logic.-7 V to +12 V common-mode input voltage range.Supports up to 32 transceivers on a bus.Industry-standard 75176 pinout.Low-power shutdown mode.Driver current limiting and thermal shutdown protection.Suitable for industrial automation and embedded communication applications.Compact SOP-8 / SOIC-8 surface-mount package.Specifications:ParameterValueProduct TypeRS-485 / RS-422 Transceiver ICModelMAX3485ESA+TTypeSMDInterfaceRS-485 / RS-422Communication ModeHalf-DuplexNumber of Drivers1Number of Receivers1Maximum Data Rate10 MbpsSupply Voltage3.0 V to 3.6 VNominal Supply Voltage3.3 VCommon-Mode Input Range-7 V to +12 VMaximum Bus Nodes32Receiver Hysteresis50 mVShutdown Current2 nAOperating Temperature-40°C to +85°CPackageSOP-8 / SOIC-8Mounting TypeSurface MountPin Configuration:Pin No.Pin NameDescription1ROReceiver Output2REReceiver Enable, Active LOW3DEDriver Enable, Active HIGH4DIDriver Input5GNDGround6ANon-Inverting RS-485 Bus Line7BInverting RS-485 Bus Line8VCCPositive Supply VoltageAlso Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 × MAX3485ESA-HLF-RS485/RS422 Transceiver IC SOP-8 Package
