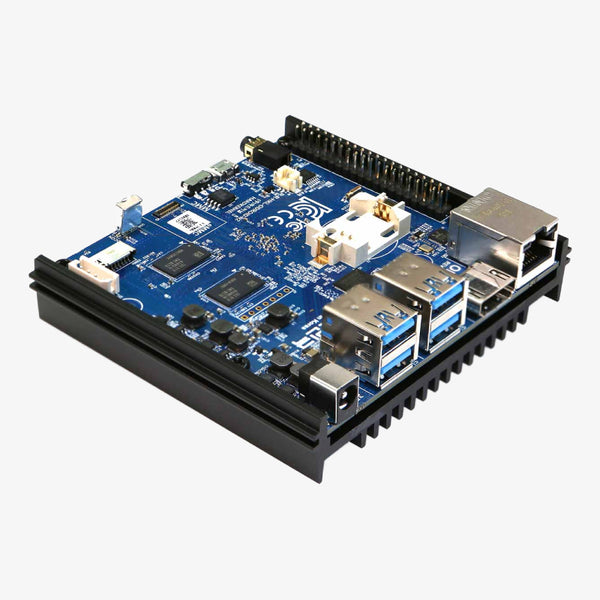

ODROID-N2+ with 2GByte RAM

ODROID-N2+ with 2GByte RAM is a high-performance single-board computer powered by the Amlogic S922X processor featuring a big.LITTLE architecture with Cortex-A73 and Cortex-A53 cores. Designed for Linux development, media centers, home servers, embedded systems, and edge computing applications, it delivers excellent performance, efficient power consumption, and extensive connectivity options.ODROID-N2+ with 2GByte RAM DatasheetFeatures:Amlogic S922X Hexa-Core ProcessorQuad-Core Cortex-A73 up to 2.4GHzDual-Core Cortex-A53 up to 2.0GHzMali-G52 GPU with 6 Execution Engines2GB DDR4 High-Speed MemoryGigabit Ethernet Connectivity4 USB 3.0 Host PortsHDMI 2.0 with 4K@60Hz Support40-Pin GPIO Expansion HeaderOnboard RTC with Backup Battery Connector8MB SPI Flash Boot ManagerLarge Passive Heatsink for Efficient CoolingBoard Details:LabelComponentDescriptionAS922X CPUAmlogic S922X Hexa-Core ProcessorBDDR4 RAM4GB DDR4 System MemoryCRJ45 Ethernet PortGigabit Ethernet Port (10/100/1000 Mbps)DHDMI 2.0HDMI Display Output up to 4K@60HzEUSB 3.0 Ports4 × USB 3.0 Host PortsFSystem LED Indicators2 × System Status LEDsGDC Power JackDC Power Input ConnectorHAV OutStereo Audio and Composite Video OutputIMicro USB 2.0 OTGUSB OTG Port for Host/Device ModeJSPI Flash8MiB SPI Flash MemoryKSPI Boot Select SwitchBoot Device Selection SwitchLeMMC Module SocketeMMC Storage Expansion SocketMMicro SD SlotMicroSD Card Storage SlotNIR ReceiverInfrared Remote Control ReceiverORTC Backup Battery HolderReal-Time Clock Backup Battery ConnectorPActive Cooling Fan Connector2-Pin Cooling Fan HeaderQGPIO Header40-Pin GPIO Expansion InterfaceRUART ConsoleUART Port for System Debugging and Console AccessPin Configuration:GPIO Header: 40-Pin expansion header for external peripheralsSPI: High-speed serial communication interface with support for frequencies above 150MHzUART: Serial communication and system debugging interfaceI2C: 2 communication interfaces for peripheral connectivityGPIO: Up to 25 programmable GPIO pinsADC: 2 × 10-bit analog input channels (1.8V Max)USB 3.0: 4 high-speed USB host portsUSB OTG: Micro USB 2.0 OTG port for host or device modeHDMI: HDMI 2.0 output supporting up to 4K@60HzRJ45 Ethernet: Gigabit Ethernet network connectionRTC Connector: Backup battery connection for real-time clockFan Connector: 5V active cooling fan connectionIR Receiver: Infrared remote control inputSpecifications:ParameterValueBrandHardkernelModelODROID-N2+Product TypeSingle Board ComputerProcessorAmlogic S922X (12nm)CPU ArchitectureARMv8-A big.LITTLEHigh Performance Cores4 × Cortex-A73 up to 2.4GHzEfficiency Cores2 × Cortex-A53 up to 2.0GHzGPUMali-G52 MP6GPU Frequency800MHzRAM2GB DDR4Memory Bus Width32-bitMemory Data Rate2640 MT/sStorage SupporteMMC Module Socket, MicroSD Card SlotSPI Flash8MBEthernetGigabit RJ45 (10/100/1000Mbps)HDMIHDMI 2.0 up to 4K@60HzUSB Host Ports4 × USB 3.0USB OTG1 × Micro USB 2.0 OTGAudio Output3.5mm Stereo Line-OutVideo OutputComposite VideoRTCOnboard RTC with Backup Battery ConnectorIR ReceiverSupportedFan Connector5V 2-Pin Active Cooling Fan HeaderPower InputDC 7.5V – 18VRecommended Power Supply12V / 2AIdle Power Consumption2.2W – 2.5WFull Load Power Consumption5.9W – 6.2WBoard Dimensions90 × 90 × 17 mmHeatsink Dimensions100 × 91 × 18.75 mmWeight200 g Also Check This Products:-ODROID-N2+ with 4GByte RAMODROID-M1S with 4GByte RAM with US plugODROID-C5 with DDR4 4GByte RAMPackage Includes:1 x ODROID-N2+ with 2GByte RAM

Check price on store · Out of stock
