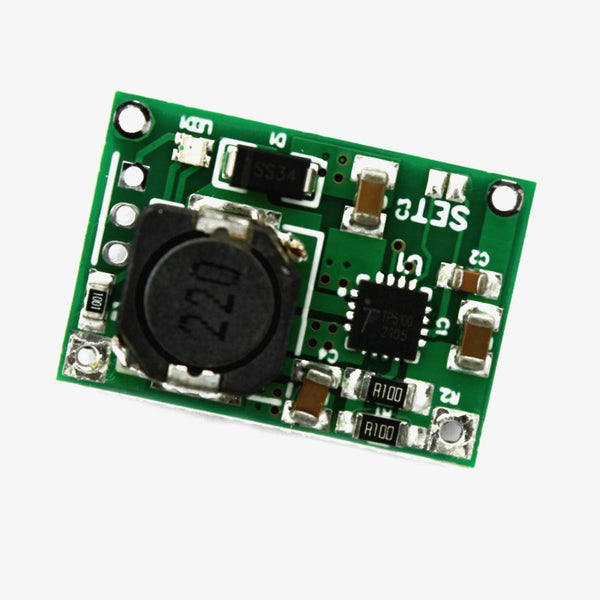

TP5100 4.2V/8.4V Li-ion Battery Charging Module (Single/Dual Cell)

TP5100 is a Lithium battery management chip. It is capable of charging a single lithium-ion cell or two lithium-ion cells wired in series at the same time. It is designed for a double 8.4V / 4.2V single lithium-ion battery.This Li-ion Battery charging module comes in a small package making it ideal for portable devices. It has an in-built input overcurrent, under-voltage protection, over-temperature protection, short circuit protection, battery temperature monitoring, and reverse battery protection.Package Includes: 1 X TP5100 8.4V/4.2V Li-ion Battery Charging ModulePin Description for the TP5100 8.4V/4.2V Li-ion Battery Charging Module:Technical Specifications:Dual-cell 8.4V/Single-cell 4.2VInput voltage: 5V-15V DCSwitching frequency: 400kHzRed LED: Charging indicatorBlue LED: Full charge/ No battery indicatorBoth Red/Blue LED off: VIN very low/High-temperature shutdownNo need for external anti-backflow Schottky diodeOnboard solder jumper to set 1S/2S modeOption for an external bicolor LED

INR 57 · Out of stock
