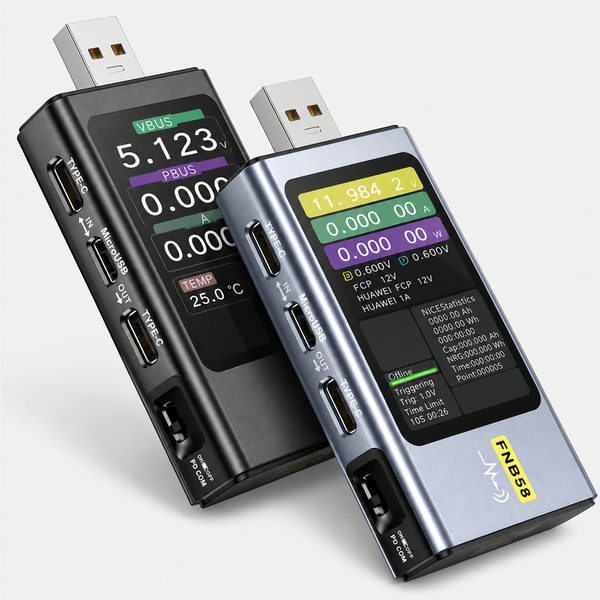

FNIRSI® FNB58 USB Fast Charge Tester

FNIRSI® FNB58 USB Fast Charge Tester is a professional USB power analyzer and fast charging protocol tester designed for measuring voltage, current, power, capacity, energy, cable resistance, and charging protocols across USB-powered devices. Equipped with a 2.0-inch TFT color display, integrated USB-A, USB Type-C, and Micro-USB interfaces, the FNB58 supports nearly all major fast charging protocols including PD, QC, VOOC, SCP, AFC, and more. It also features waveform recording, E-Marker cable detection, PD monitoring, and data logging, making it an essential tool for engineers, technicians, repair professionals, and electronics enthusiasts.FNIRSI® FNB58 USB Fast Charge Tester DatasheetFeatures:2.0-inch Full Color TFT LCD DisplayIntegrated USB-A, USB Type-C & Micro-USB Interfaces16-bit High Precision ADCSupports USB Power Monitoring up to 140WFast Charging Protocol AnalyzerPD2.0 / PD3.0 Trigger SupportQC2.0 / QC3.0 Trigger SupportFCP / SCP / AFC Protocol SupportVOOC / WARP / Super VOOC Trigger SupportMTK-PE Automatic DetectionQC to PD Protocol ConversionCable Resistance MeasurementE-Marker Cable DetectionDASH Cable Data ReadingReal-Time Voltage, Current & Power MonitoringWaveform Recording & AnalysisInternal Temperature MonitoringFirmware Upgrade SupportBasic SpecificationsParameterValueBrandFNIRSI®ModelFNB58Product TypeUSB Fast Charge TesterDisplay2.0-inch TFT Full Color LCDADC Resolution16-bit High Precision ADCPD ControllerDedicated PD Protocol Physical Chip Measurement SpecificationsParameterValueVoltage Measurement4V – 28VCurrent Measurement0 – 7APower Measurement0 – 140WD+ / D- Voltage0 – 3.3VCable Resistance0 – 9999.9ΩLoad Equivalent Resistance0 – 9999.9ΩCapacity Measurement0 – 9999.99AhEnergy Measurement0 – 9999.99WhTemperature Display°C / °FDevice Running Time99 Days 23:59:59Data Recording Time99 Days 23:59:59 Fast Charging Protocol SupportProtocolSupportUSB PD 2.0YesUSB PD 3.0YesQualcomm QC2.0YesQualcomm QC3.0YesHuawei FCPYesHuawei SCPYesSamsung AFCYesMediaTek PEAutomatic DetectionOPPO VOOCYesWARP ChargeYesSuper VOOC 1.0YesSuper VOOC 2.0YesQC2.0 → PD2.0 ConversionSupported Monitoring & Analysis FunctionsFunctionSupportReal-Time Voltage MonitoringYesReal-Time Current MonitoringYesReal-Time Power MonitoringYesCapacity StatisticsYesEnergy StatisticsYesInternal Resistance MeasurementYesCable Resistance TestYesD+ / D- Voltage DetectionYesStartup Time RecordingYesOnboard Temperature MonitoringYesPD Communication MonitoringYesAnalog DASH CableSupportedE-Marker Cable ReadingSupportedDASH Cable Data ReadingSupported Data Logging & Waveform FunctionsParameterValueData Storage10 Independent GroupsWaveform RecordingSupportedLow-Speed Sampling2 SPS – 100 SPSHigh-Speed Ripple SamplingUp to 4MSPSWaveform DisplaySupportedData LoggingSupported Interface SpecificationsParameterValueUSB-AIntegratedUSB Type-CIntegratedMicro-USBIntegratedFirmware UpgradeSupportedPC Software SupportSupported Physical SpecificationsParameterValueDisplay Size2.0 InchesDisplay TypeTFT Full Color LCDConstructionPortable Handheld Design Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.Also Check These Products:-FNIRSI HRM-10 Battery Voltage Internal Resistance TesterFNIRSI LCR-P1 Multifunction Transistor Capacitor TesterFNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR TesterFNIRSI DMC-100 DC AC Current Voltage Digital Clamp MultimeterFNIRSI DMT-99 Intelligent Color Screen Digital MultiMeterPackage Includes:1 x FNIRSI® FNB58 USB Fast Charge Tester
