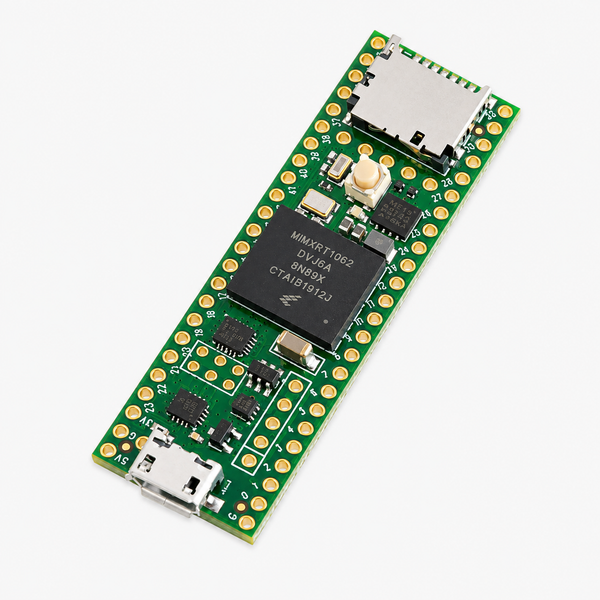

Teensy 4.1 Development Board

Teensy 4.1 Development Board is a high-performance ARM Cortex-M7 microcontroller development board powered by the NXP i.MX RT1062 processor running at 600MHz. It offers exceptional processing power, abundant memory, high-speed USB, Ethernet support, SD card interface, CAN bus, SPI, I²C, UART, I²S, and numerous GPIOs, making it ideal for embedded systems, robotics, audio processing, industrial automation, and IoT applications.Features:Powered by a 600MHz ARM Cortex-M7 processor.Compatible with the Arduino IDE using the Teensyduino add-on.Large Flash and RAM for complex embedded applications.Supports USB Host and USB Device functionality.Built-in microSD card socket for data logging and storage.Ethernet PHY support through onboard pads.Dual CAN Bus interfaces for automotive and industrial communication.High-speed SPI, I²C, UART, I²S, PWM, and ADC interfaces.Supports floating-point operations and DSP instructions.Compact form factor with breadboard-friendly pin spacing.Ideal for robotics, audio processing, industrial control, and IoT projects.Specifications:ParameterValueProduct TypeDevelopment BoardModelTeensy 4.1Main ControllerNXP i.MX RT1062CPU CoreARM Cortex-M7Clock Speed600MHzFlash Memory8MB QSPI FlashRAM1024KB (1MB)EEPROM4284 Bytes (Emulated)Operating Voltage3.3VInput Voltage (VIN)3.6V – 5.5VDigital I/O Pins55PWM Pins35Analog Input Pins18ADC Resolution12-bitDAC Resolution12-bit (2 Channels)USB InterfaceUSB 2.0 High Speed (480Mbps)Ethernet Support10/100 Ethernet PHY (via RMII)CAN Interfaces2 × CAN BusSPI Interfaces3I²C Interfaces3UART Interfaces8I²S / Audio Interfaces3microSD Card SlotYesRTCYesGPIO Logic Level3.3VProgramming InterfaceMicro USBBoard Dimensions61 × 18mmOperating Temperature-40°C to +85°CCompatible SoftwareArduino IDE (Teensyduino), PlatformIOApplicationsRobotics, Audio Processing, Embedded Systems, Industrial Automation, Data Logging, IoT, CNC Control, InstrumentationAlso Check These Out: Package Includes:1 × Teensy 4.1 Development Board
