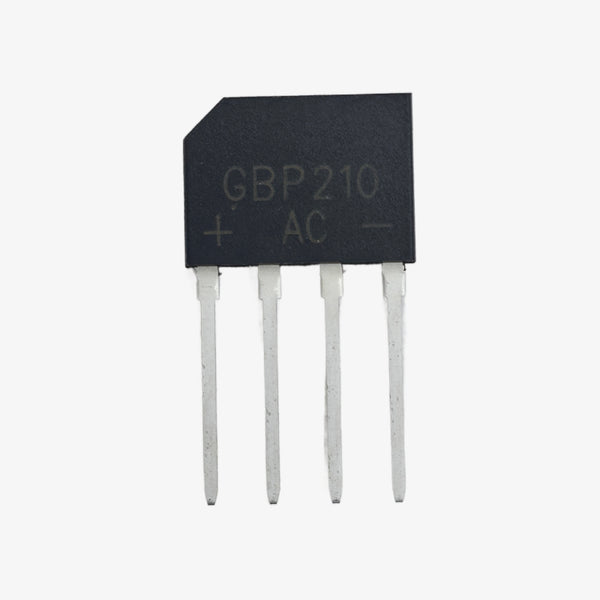

GBP210 2A 1000V Single Phase Bridge Rectifier Module - Axial 4-Lead Package

The GBP210 Bridge Rectifier 2A is a compact through-hole rectifier designed for efficient AC to DC conversion in general-purpose electronic circuits. Its diffused junction structure ensures high current capability and long-term reliability. Ideal for power adapters, chargers, control panels, and low-power rectification systems.CLICK HERE FOR DATASHEETFeatures:Diffused junction design for stable performanceHigh surge current capacity up to 60ALow forward voltage drop for energy-efficient operationReliable plated leads suitable for PCB mountingCompact molded package with excellent thermal resistanceSpecifications:Average Forward Rectified Current (IO): 2.0A (TA = 50°C)Peak Repetitive Reverse Voltage (VRRM): 1000VDC Blocking Voltage (VR): 1000VRMS Reverse Voltage (VR(RMS)): 700VPeak Forward Surge Current (IFSM): 60A (8.3ms half-sine wave)Forward Voltage (VFM): 1.1V at IF = 2.0AReverse Current (IRM) at 25°C: 10µAReverse Current (IRM) at 100°C: 500µAThermal Resistance Junction-to-Ambient (RθJA): 30°C/WOperating Junction Temperature (TJ): -55°C to +150°CStorage Temperature (TSTG): -55°C to +150°CPackage Includes:1 × GBP210 2A 1000V Single Phase Bridge Rectifier Module - Axial 4-Lead Package

INR 11 · In stock
