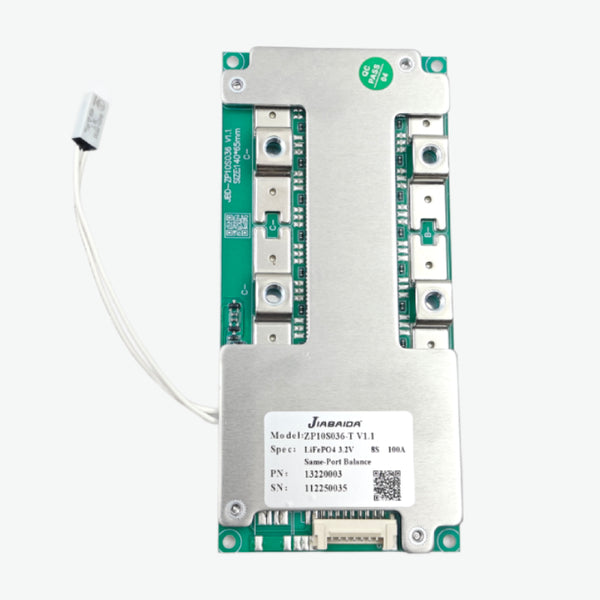

Jiabaida (JBD) LiFePo4 8S 25.6V 100A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 8S 25.6V 100A is a high-performance Battery Management System (BMS) built on the ZP10S036 hardware, tailored for 8-cell LiFePo4 battery packs requiring high current output. This BMS features passive balancing, robust protection against overcharge, over-discharge, short circuit, and overcurrent, and supports continuous discharge up to 100A. It is ideally suited for electric vehicles, solar energy systems, and other high-power LiFePo4 battery applications where reliability and efficiency are critical.Jiabaida (JBD) LiFePo4 8S 25.6V 100A BMS Features:High 100A continuous discharge supportIntelligent passive cell balancingBuilt-in protections for over-voltage, under-voltage, overcurrent, and short circuitZP10S036 hardware platform for precise battery managementSuitable for high-load LiFePo4 battery-powered systemsJiabaida (JBD) LiFePo4 8S 25.6V 100A BMS Specification:SpecificationValueModelZP10S036Supported Cells8S (LiFePo4)Nominal Voltage (V)25.6VCharge Voltage (V)29.2VCharge Current (A)50AContinuous Discharge Current (A)100ABalance Current (mA)30 ±5Overcharge Detect Voltage (V)3.75 ±0.05Overcharge Release Voltage (V)3.55 ±0.05Over Discharge Detect Voltage (V)2.20 ±0.1Over Discharge Release Voltage (V)2.50 ±0.1Operating Temperature (°C)-20 to 70Dimensions (mm)140 x 65 x 12mm Package Includes:1 x Jiabaida (JBD) LiFePo4 8S 25.6V 100A Battery Management System - BMS Protection Board

Check price on store · In stock
