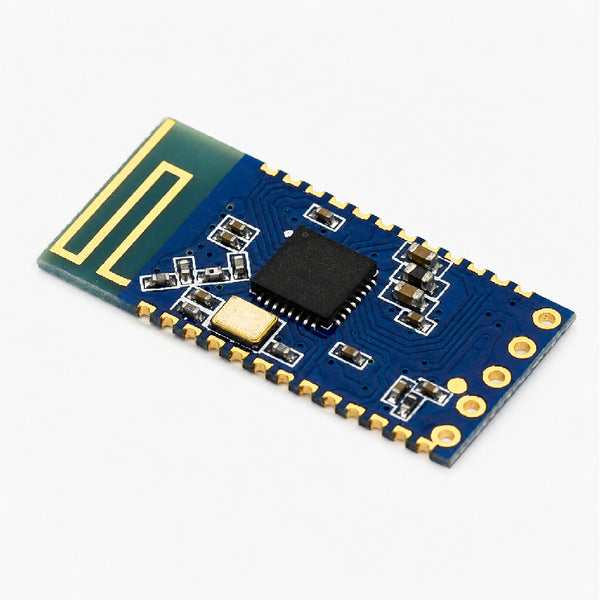

JDY-24M Bluetooth BLE 5.0 MESH ZigBee Module

JDY-24M Bluetooth BLE 5.0 MESH Module is a versatile low-power wireless communication module designed for IoT devices, smart home automation, wireless sensor networks, industrial control systems, and Bluetooth data transmission applications. Based on Bluetooth 5.0 technology, it supports transparent serial communication, iBeacon, BLE scanning, MESH networking, and multi-device connectivity, making it ideal for advanced wireless networking projects.Features:Bluetooth 5.0 BLE CommunicationMESH Networking SupportSupports Up to 65,535 Node NetworkingMaster-Slave Transparent TransmissioniBeacon Broadcast FunctioniBeacon Detection FunctionBLE Probe FunctionMulti-Hop Wireless Anti-Collision TechnologyMulti-Linked Slave Mode SupportLow Power Consumption DesignUART Serial Communication InterfaceOn-Board PCB AntennaCompatible with Android and iOS ApplicationsSpecifications:ParameterValueProduct TypeBluetooth BLE MESH ModuleModelJDY-24MBluetooth VersionBLE 5.0Working Voltage1.9V – 3.6V DCWorking Temperature-40°C to +85°CMaximum Transmit Power+4 dBmReceiving Sensitivity-96 dBmAntenna TypePCB On-Board AntennaAntenna Gain-3 dBiCommunication InterfaceUARTCommunication ModeTransparent TransmissionMESH NetworkingSupportedMaximum MESH Nodes65,535 DevicesAPP CompatibilityAndroid / iOSCommunication Speed (APP)8 KB/sMESH Communication Speed16 Bytes / 50 msSMT Soldering Temperature< 260°CModule Dimensions27 × 12.88 × 1.6 mmSupported Functions:Master-Slave Transparent TransmissioniBeacon BroadcastingiBeacon DetectionBLE Device ScanningBluetooth MESH NetworkingMulti-Linked Slave ModeWireless Data RelayRemote IO ControlButton Input ControlResponse and Non-Response Data CommunicationAutomatic Network FormationPin Configuration:EN – Wake-up pin and AT command control inputVCC – Power Supply Input (1.9V–3.6V DC)GND – GroundTXD – UART Serial Data OutputRXD – UART Serial Data InputSTATE – Connection Status Output (LOW: Disconnected, HIGH: Connected)Also Check These Out:-JDY-25M Bluetooth 5.0 BLE5.0 Mesh Networking ModuleHC-42 Bluetooth 5.0 BLE Serial Port ModuleHC-08 Bluetooth 4.0 BLE Serial Port ModulePackage Includes:1 x JDY-24M Bluetooth BLE 5.0 MESH Module

INR 228 · In stock
