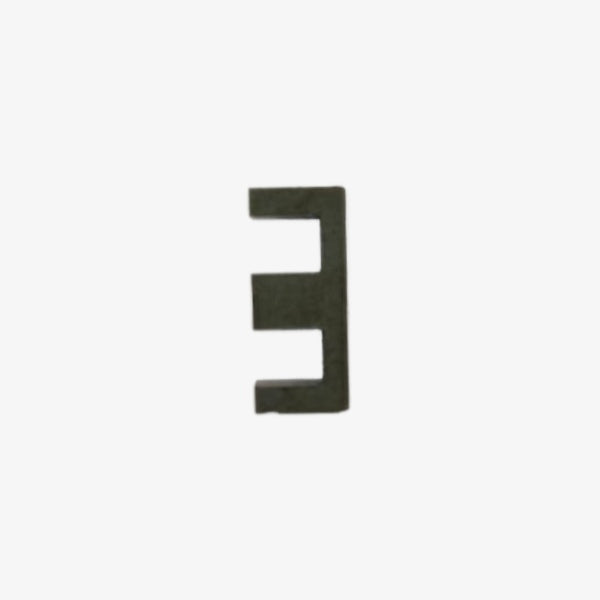

EE19-5 Ferrite Transformer Cores (Pair)

EE19-5 ferrite transformer cores are magnetic components commonly used in high-frequency transformers and inductors, particularly within switching power supplies. Their design, featuring two 'E'-shaped halves, offers efficient magnetic coupling and minimizes leakage inductance.Key Specifications:Dimensions:A: 19.0 ± 0.4 mmB: 8.0 ± 0.3 mmC: 5.0 ± 0.3 mmD: 5.0 ± 0.3 mmE: 14.2 mm (minimum)F: 5.7 ± 0.2 mmThese dimensions ensure compatibility with standard bobbins and hardware, facilitating ease of assembly in various electronic circuits. Material: Typically made from Mn-Zn ferrite materials like PC40, which offer high permeability and low core lossesInductance Factor (A_L): Approximately 1150 nH, indicating the inductance per turn squared, which is crucial for transformer design calculations. Applications:Switching Power Supplies: Efficiently handle high-frequency operations with minimal losses.Transformers: Suitable for power and signal transformers requiring compact size and high performance.Inductors: Employed in various inductor designs, including power inductors and filter inductors, to ensure consistent inductance values.

INR 25 · In stock
