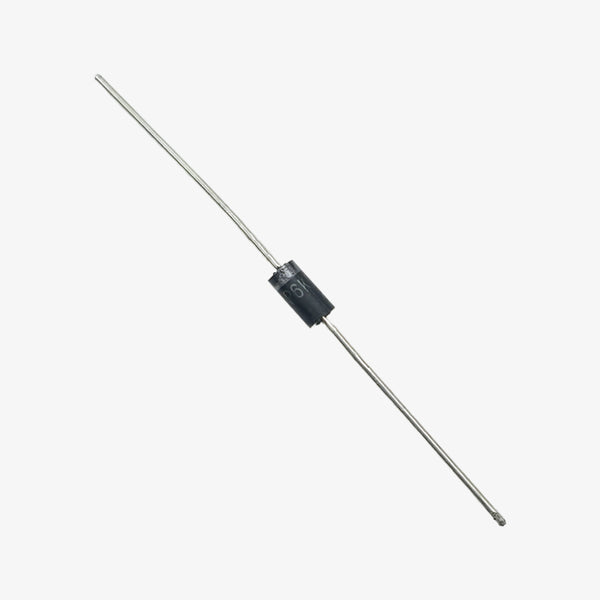

P6KE540A Transient Voltage Suppressor Diode - DO-15

The P6KE540A Transient Voltage Suppressor Diode - DO-15 is designed to protect sensitive electronic equipment from voltage surges caused by lightning, inductive switching, and other transient events. With its robust glass-passivated junction and rapid clamping action, it ensures reliable protection for industrial, automotive, and telecommunication systems. Ideal for safeguarding ICs, MOSFETs, and signal lines in high-voltage applications.CLICK HERE FOR DATASHEETFeatures:600 W peak pulse power capability with 10/1000 μs waveformGlass passivated chip junction for superior stabilityFast response time and excellent clamping performanceLow incremental surge resistance for consistent operationHalogen-free, RoHS compliant, and AEC-Q101 qualifiedSpecifications:Reverse Stand-off Voltage (VR): 459.0 VBreakdown Voltage (VBR): 513.0 V to 567.0 VTest Current (IT): 1 mAMaximum Clamping Voltage (VC): 740.0 VMaximum Peak Pulse Current (Ipp): 0.81 AMaximum Reverse Leakage (IR): 1 µAPeak Pulse Power Dissipation (PPPM): 600 WOperating Junction Temperature (TJ): -55°C to +175°CStorage Temperature (TSTG): -55°C to +175°CPackage Includes:1 × P6KE540A Transient Voltage Suppressor Diode - DO-15

INR 33 · In stock
