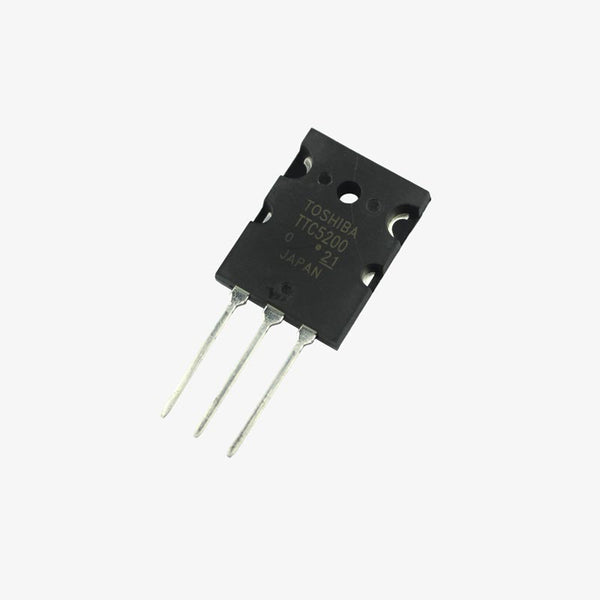

2SC5200-O NPN Transistor Toshiba - TO-264 DIP Package

2SC5200 Transistor is an NPN Power Transistor manufactured by Toshiba. It has collector continuous current of 15A and a Collector-Emitter voltage of 230V. The base current of this transistor is about 1.5A and the Emitter base voltage is 5V. Due to its high current gain and collector current, this c5200 transistor is very commonly used in High power audio circuits or AF amplifiers. Recommended for 150-W high-fidelity audio frequency amplifier output stage. The transistor is popularly used in push-pull audio circuits along with this PNP Equivalent 2SC1943 PNP Transistor. Features & SpecificationsHigh-power NPN TransistorDC Current Gain (hFE):55 to 160Continuous Collector current (IC): 15ACollector-Emitter voltage (VCE): 230 VCollector-Base voltage (VCB): 230VEmitter Base Voltage (VBE): 5VTransition Frequency: 30MHzMinimum Operating Temperature: - 55 CMaximum Operating Temperature: 150 °CAvailable in To-264 PackageMounting Style: Through Hole Package Contents1×2SC5200-O NPN Transistor Additional Resources2SC5200 Datasheet2SC5200 Tutorial

INR 76 · In stock
