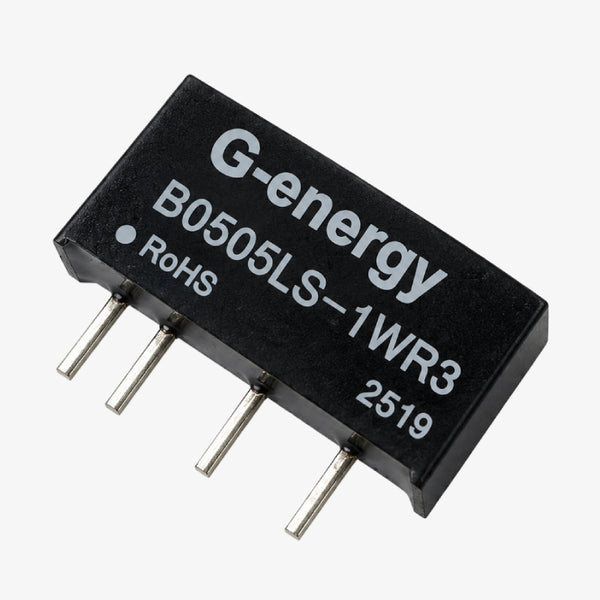

G-energy B0505LS-1WR3 5V To 5V 200mA 1W DC - DC Converter

G-energy B0505LS-1WR3 5V To 5V 200mA 1W DC - DC Converter is a compact isolated DC-DC converter designed to provide a regulated-isolation interface between two 5V DC circuits. The B0505LS-1WR3 accepts a 4.5V to 5.5V input and provides a single 5V output at up to 200mA, with 1W maximum output power. It provides 1500VDC input-to-output isolation, continuous self-recovering short-circuit protection, and high efficiency up to 82% typical for this 5V version. The converter uses a through-hole SIP package with an industry-standard pin arrangement and is suitable for isolated power supply requirements in digital circuits, low-frequency analog circuits, relay-driving circuits, and data-switching circuits. G-energy B0505LS-1WR3 5V To 5V 200mA 1W DC DC Converter DatasheetFeatures:G-energy B0505LS-1WR3 isolated DC-DC converter5V DC input to 5V DC output1W maximum output power200mA maximum output current4.5V to 5.5V DC input voltage range1500VDC input-to-output isolation test voltageSingle isolated outputUnregulated outputContinuous short-circuit protection with self-recoveryTypical efficiency up to 82%No-load input current as low as 5mALow ripple and noise, typically 30mVp-p270kHz typical switching frequencyMaximum capacitive load up to 2400µFOperating temperature range of -40°C to +105°CStorage temperature range of -55°C to +125°C1000MΩ minimum insulation resistance at 500VDCApproximately 20pF isolation capacitanceSIP through-hole packageIndustry-standard pin configurationBlack flame-retardant and heat-resistant UL94V-0 caseRoHS compliantSuitable for isolated power supplies, digital circuits, low-frequency analog circuits, relay drive circuits, and data switching circuitsSpecifications:SpecificationValueManufacturerG-energyPart NumberB0505LS-1WR3Product TypeIsolated DC-DC ConverterInput Voltage4.5V to 5.5V DCNominal Input Voltage5V DCOutput Voltage5V DCOutput Current20mA to 200mAMaximum Output Current200mAMinimum Output Current20mAOutput Power1WNumber of Outputs1Output TypeSingle, IsolatedIsolation Voltage1500VDCIsolation Resistance≥1000MΩ at 500VDCIsolation Capacitance≤20pFEfficiency82% No-Load Input Current5mA Full-Load Input Current270mA Switching Frequency270kHz Ripple & Noise30mVp-p Load Regulation10% Typical, 15% MaximumShort-Circuit ProtectionContinuous, Self-RecoveryMaximum Capacitive Load2400µFOperating Temperature-40°C to +105°CStorage Temperature-55°C to +125°CCase Temperature Rise15°C Typical at 25°C AmbientSoldering Temperature300°C MaximumStorage Humidity≤95% RH, Non-CondensingCase MaterialBlack Flame-Retardant PlasticFlammability RatingUL94V-0Mounting TypeThrough HolePackageSIPDimensions19.65 × 6.00 × 10.16 mmWeight2.1gCoolingFree-Air ConvectionPin Count4Pin Pitch2.54 mmRoHSYesPin Configuration:PinFunction1GND2+Vin3-Vo4+VoIf you're exploring similar compact AC-DC power solutions, you can also check out the Hi-Link 3.3V 5W Power Supply Module (HLK-5M03) for low-voltage applications, the Hi-Link 5V 2W Power Supply Module (HLK-2M05) for small embedded projects, the Hi-Link 12V 5W Power Supply Module (HLK-5M12) for standard electronics setups, and the Hi-Link 24V 5W Power Supply Module (HLK-5M24) for higher voltage requirements, all offering reliable and efficient power conversion for a wide range of applications.Package Includes:1 × G-energy B0505LS-1WR3 5V To 5V 200mA 1W DC - DC Converter

INR 65 · In stock
