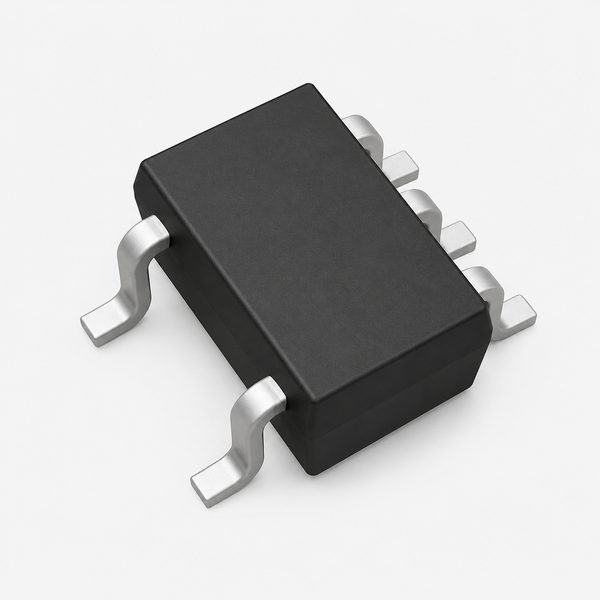

AP2112K 3.3 Diodes Inc LDO Linear Voltage Regulator IC - SOT-23-5 Package

AP2112K-3.3 Diodes LDO Linear Voltage Regulator IC is a fixed 3.3 V low-dropout linear voltage regulator designed to provide a stable regulated output for electronic circuits. It can deliver up to 600 mA of continuous output current and includes an enable function, thermal shutdown, short-circuit protection, low quiescent current, and automatic output discharge when disabled. Its compact SOT-23-5 package makes it suitable for compact embedded systems, microcontroller boards, portable electronics, and other 3.3 V power-supply applications.AP2112K-3.3-Diodes-Inc-LDO Linear Voltage Regulator IC - SOT-23-5 Package Datasheet Features:Fixed 3.3 V regulated output.Up to 600 mA continuous output current.Low dropout voltage of 250 mV typical at 600 mA.Input voltage range of 2.5 V to 6 V.Enable function for turning the regulator ON/OFF.Automatic output discharge when disabled.Low quiescent current of 55 µA typical.Short-circuit and thermal shutdown protection.±1.5% output voltage accuracy.Stable with 1.0 µF ceramic, tantalum, or aluminum electrolytic capacitors.Compact SOT-23-5 package.Specifications:ParameterValueProduct TypeLDO Linear Voltage Regulator ICModelAP2112K-3.3BrandDiodes IncorporatedOutput Voltage3.3 VOutput TypeFixedOutput Current600 mAInput Voltage Range2.5 V to 6 VOutput Voltage Accuracy±1.5%Dropout Voltage250 mV Typ. @ 600 mAQuiescent Current55 µA Typ.Standby Current0.01 µA Typ.PSRR65 dB @ 100 Hz to 1 kHzOutput Noise50 µVRMSEnable InputYesProtectionShort Circuit, Thermal ShutdownOperating Temperature-40°C to +85°CPackageSOT-23-5 / SOT25Mounting TypeSurface MountPin Configuration:Pin No.Pin NameDescription1VINInput Voltage2GNDGround3ENChip Enable; High = ON, Low = Shutdown4NCNo Connection5VOUT3.3 V Regulated OutputAlso Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 × AP2112K-3.3 Diodes LDO Linear Voltage Regulator IC - SOT-23-5 Package
