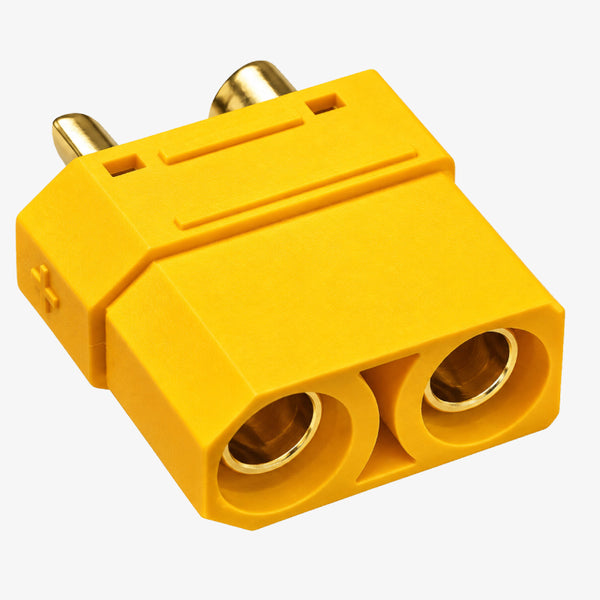

Amass XT90 Female Connector Without Housing

Amass XT90 Female Connector Without Housing is a high-current, two-pole DC power connector designed for battery packs, RC vehicles, drones, and other power electronics applications. It features gold-plated metal contacts and solder terminals compatible with 8 AWG wire, enabling low-resistance power connections. The keyed connector design helps prevent reverse mating, while the housing-free configuration is suitable for custom connector assembly where external insulation is provided separately.Features:Female connector compatible with the matching XT90 male connectorTwo-pole configuration for positive and negative DC power connectionsGold-plated contacts for reduced contact resistanceSolder terminals for direct wire attachmentCompatible with 8 AWG power wire4.5mm contact sizeDesigned for high-current battery and power connectionsKeyed mating profile helps prevent incorrect orientationSuitable for drones, RC vehicles, battery packs, ESCs, and chargersHousing-free configuration for custom assemblySpecifications:SpecificationValueBrandAmassSeriesXT90Connector TypeDC power connectorConnector GenderFemaleNumber of Poles2Contact Size4.5mmCompatible Wire Gauge8 AWGConnection MethodSolderingContact MaterialGold-plated metalContinuous Current Rating45APeak Current Rating90ARated Voltage500V DCContact Resistance≤0.40mΩInsulation Resistance≥2000MΩOperating Temperature-20°C to +120°CHousingNot includedCompatible ConnectorXT90 MaleApplicationsBattery packs, drones, RC vehicles, ESCs, and DC power systemsAlso Check These Products:-XT-60 Connector MaleXT-60 Connector FemaleXT-60 Male to Female Connector with 14AWG Silicone WireXT-60 Male Connector to DC Jack Male & Female Pair ConnectorPackage Includes:1 × Amass XT90 Female Connector Without Housing

INR 64 · In stock
