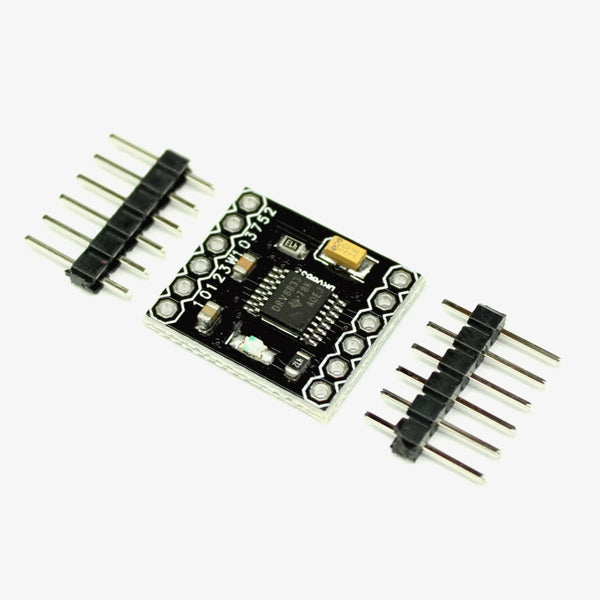

DRV8833 2 Channel DC Motor Driver Module

DRV8833 is a dual H-bridge motor driver IC that can be used for bidirectional control of two brushed DC motors at 2.7 V to 10.8 V. The maximum supply current is limited up to about 1.2 A per channel continuously whereas the peak current rating is 2A per channel for a few seconds. It is a small and useful breakout board that comes with all components pre soldered in this module. The DRV8833 has built-in current-limiting, and no need for externally supplied logic voltage.DRV8833 Module Board pinout: Specifications:Dual-H-bridge motor driver: Operating voltage: 2.7‌‌ V to 10.8 VOutput current: 1.2 A continuous (2 A peak) per motor.Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor.3V- and 5V Logic Voltage compatibleUnder-voltage lockout and protection against over-current and over-temperature.Reverse-voltage protection circuit.Current limiting can be enabled by adding sense resistors.DRV8833 Module Board Dimension and footprint:DRV8833 Module Board Applications:Motor ControlIndustrial AutomationsSolenoid ControlSmall RoboticsExample Projects on DRV8833 Module Board:DRV8833 Interfacing With ArduinoAdditional Resources:DRV8833 Datasheet Package Contains1x DRV8833 Module Board

INR 63 · In stock
