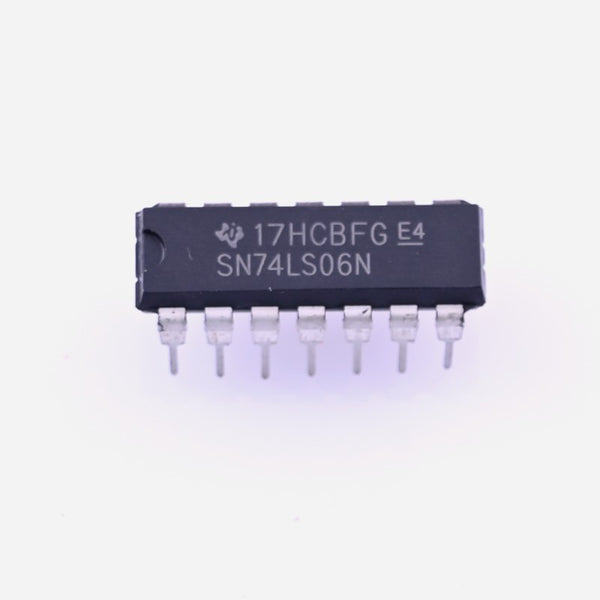

74LS06 - Hex Inverter/Buffer IC

The 74LS06 is a Hex Inverter (NOT gate) IC. That is, the IC contains six NOT gates, each with one input and one output pin. Each of the six NOT gates is powered by a common rail but can operate independently to perform logic INVERT function or Boolean Y = Ᾱ in positive logic. The recommended operating voltage for this IC is from 4.75V to 5.5V with a maximum operating voltage up to 7V. The minimum high level input voltage is 2V and the maximum low level input voltage is 0.8V. Product Description of 74LS06IC Features of 74LS06 ICPerforms the Boolean function Y = ᾹRecommended Supply Voltage 4.75V to 5.25VHigh speed – 19ns (Typ) propagation delayHigh Level Output Current: -0.4 mALow Level Output Current: 8 mAOperating Ambient Temperature Range: -20 to +70 °C Mechanical Drawing

INR 21 · In stock
