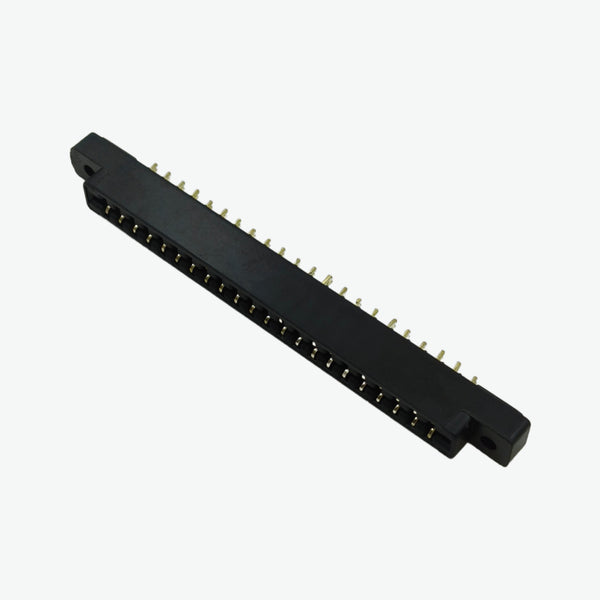

22 Contact Card Edge Connector - 3.96mm Pitch 5A 600V

The Card Edge Connector with Tuning Fork (TF) contacts is a high-performance connector designed for reliable PCB connections in industrial and electronic applications. Featuring a robust DAP/phenolic (Bakelite) insulator and gold- or tin-plated phosphor bronze contacts, it delivers excellent electrical performance and mechanical durability. With up to 22 contacts, it supports multiple configurations for versatile PCB designs and ensures stable signal and power transmission.Features:Tuning Fork (TF) contact type for secure and reliable connectionsSolder terminal (open/close eyelet) or PMT options for flexible PCB mounting3.96mm (0.156 inch) pitch for precise board alignmentHigh mechanical durability rated for 500 mating cyclesRobust DAP/Phenolic (Bakelite) insulator ensures electrical insulation and mechanical strengthGold or tin-plated phosphor bronze contacts for excellent conductivity and corrosion resistanceCompact and reliable design ideal for industrial electronics, control boards, and communication modulesSpecifications:Number of Contacts: 22 Contact Type: Tuning Fork (TF)Contact Terminal: Solder (Open/Close Eyelet) / PMTContact Pitch: 3.96mm (0.156 inch)Durability: 500 cyclesInsulator: DAP / Phenolic (Bakelite)Contact Material: Phosphor BronzeContact Finish: Gold / TinTemperature Range: -65°C to +125°CWorking Voltage: 600V rmsCurrent Rating: 5AContact Resistance: ≤6 mΩInsulation Resistance: ≥5000 MΩVoltage Proof: 1800V rmsPackage Includes:1 x 22 Contact Card Edge Connector - 3.96mm Pitch

INR 255 · In stock
