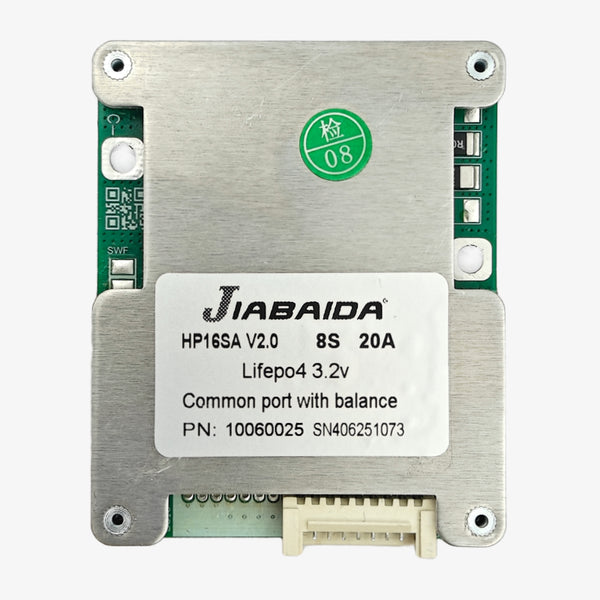

Jiabaida (JBD) LiFePo4 8S 25.6V 20A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 8S 25.6V 20A BMS is a high-performance Battery Management System (BMS) based on the HP16SA chipset, designed for 8-cell LiFePo4 battery packs. This BMS provides 20A continuous discharge and offers comprehensive protection against overcharge, over-discharge, and short circuits, ensuring safe and efficient operation. The passive balancing function helps maintain balanced cell voltage for optimal battery life. With a compact design and integrated aluminum heat sink, it is ideal for use in electric vehicles, solar storage systems, and other high-power applications.Jiabaida (JBD) LiFePo4 8S 25.6V 20A BMS Features:20A continuous discharge current for moderate-power applicationsPassive cell balancing for optimal battery performanceIntegrated protection for overcharge, over-discharge, and short-circuitHP16SA chipset for precise control and reliabilityAluminum heat sink for effective heat dissipationDesigned for 8S LiFePo4 battery packsJiabaida (JBD) LiFePo4 8S 25.6V 20A BMS Specification:SpecificationValueChipsetHP16SASupported Cells8S (LiFePo4)Nominal Voltage (V)25.6VCharge Voltage (V)29.2VCharge Current (A)10AContinuous Discharge Current (A)20ABalance Current (mA)30 ±5Overcharge Detect Voltage (V)3.75 ±0.05Overcharge Release Voltage (V)3.60 ±0.05Over-Discharge Detect Voltage (V)2.00 ±0.1Over-Discharge Release Voltage (V)2.50 ±0.1Operating Temperature (°C)-20°C to 60°CDimensions (mm)57x 69 x 10mm Package Includes:1 x Jiabaida (JBD) LiFePo4 4S 12.8V 20A Battery Management System - BMS Protection Board

INR 889 · Out of stock
