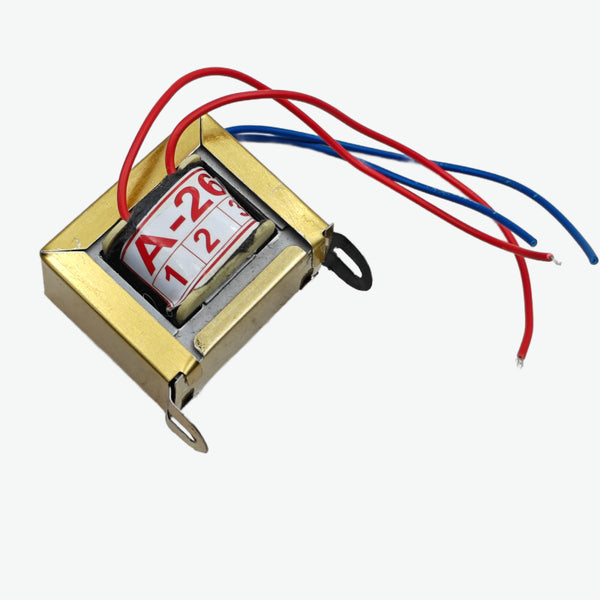

0-6 6V 500mA Step Down Transformer

Description:0-6 500mA Step Down Transformer is a general-purpose chassis mounting mains transformer. The transformer has 230V primary winding and non-center tapped secondary winding. The transformer has flying-colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as a step-down transformer reducing AC - 230V to AC - 6V.The Transformer gives outputs of 6V and 0V. The Transformer's construction is written below with details of Solid Core and Winding.The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serving to greatly reduce the magnetizing current and confine the flux to a path that closely couples the winding.Specifications of 0-6 500mA Step Down Transformer:Input Voltage: 230V ACOutput Voltage: 6V or 0VOutput Current: 500mAMounting: Vertical mount typeWinding: Copper Features of 0-6 500mA Step Down Transformer:Soft Iron Core.500mA Current Drain.100% Copper Winding Applications of 0-6 500mA Step Down Transformer:DIY projects Requiring In-Application High current drain.On chassis AC/AC converter.Designing a battery Charger.Package Contains:1×0-6 6V 500mA Step Down Transformer

INR 88 · In stock
