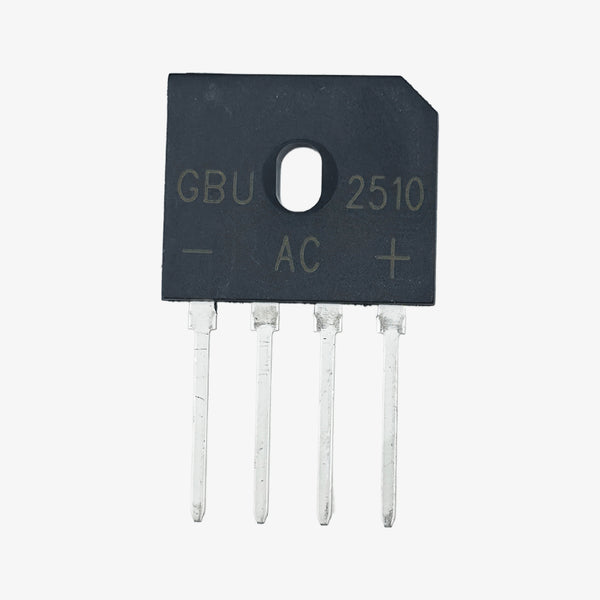

GBU2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

The GBU2510 Bridge Rectifier 25A is a heavy-duty through-hole rectifier engineered for high-current AC to DC conversion. Featuring a glass-passivated die and thermally efficient molded case, it ensures stable performance under demanding loads. Ideal for industrial power supplies, UPS systems, and inverter applications.CLICK HERE FOR DATASHEEETFeatures:High forward current capability up to 25AExceptional surge tolerance up to 350AGlass-passivated die construction for superior reliability94V-0 flame-rated plastic body for safetyVersatile mounting and polarity marking for easy installationSpecifications:Average Forward Current (IF(AV)): 25APeak Repetitive Reverse Voltage (VRRM): 1000VWorking Peak Reverse Voltage (VRWM): 1000VDC Blocking Voltage (VR): 1000VRMS Reverse Voltage (VR(RMS)): 700VPeak Forward Surge Current (IFSM): 350A (8.3ms half-sine wave)Forward Voltage (VF): 1.1V at IF = 1.0AReverse Current (IR) at 25°C: 10µA Reverse Current (IR) at 125°C: 500µA Typical Junction Capacitance (Cj): 70pFThermal Resistance (RθJA / RθJL): 21°C/W / 4°C/WOperating Junction Temperature (TJ): -65°C to +150°CStorage Temperature (TSTG): -65°C to +150°CPackage Includes:1 × GBU2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

INR 29 · In stock
