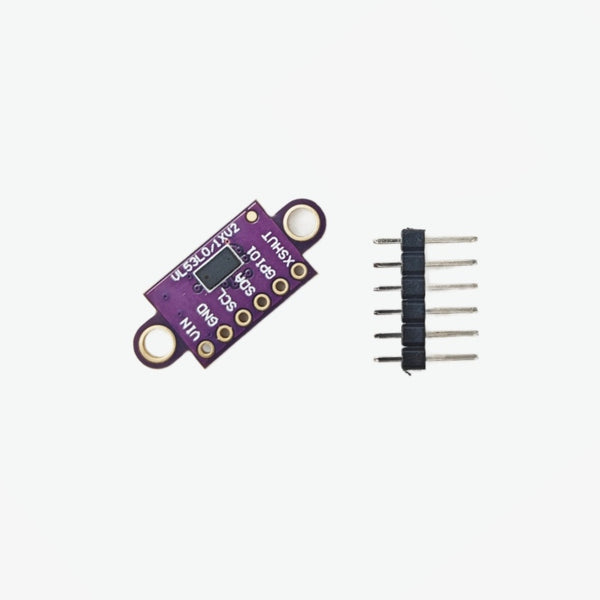

GY-53 VL53L0X Laser ToF Flight Time Ranging Sensor Module

The GY-53 VL53L0X is a high-precision laser Time-of-Flight (ToF) ranging distance sensor module that measures distances with millimeter-level accuracy. Its compact design and advanced technology make it ideal for robotics, drones, and proximity detection applications.FeaturesLaser ToF Technology: Measures distance based on the time taken for light to return, ensuring precise readings.High Accuracy: Provides millimeter-level measurement accuracy.Wide Measurement Range: Supports distances from 30mm to 2000mm.Multiple Interfaces: Supports I2C and PWM communication for flexibility in integration.Compact Design: Lightweight and space-efficient for embedded applications.Low Power Consumption: Suitable for battery-powered devices.SpecificationsSensor Model: VL53L0X.Measurement Range: 30mm to 2000mm.Operating Voltage: 3.3V–5V.Communication Interface: I2C (default address: 0x29) and PWM.Field of View (FoV): ±15°.Response Time: <50ms for distance measurement.Dimensions: L - 25mm, W: 12.2mmApplicationsObstacle avoidance in robotics and drones.Proximity sensing in industrial automation.Gesture recognition and presence detection.Depth sensing and mapping.Pinout:VIN (VCC): Power supply input, typically 2.6V to 5V.GND: Ground connection.SCL: Serial Clock Line for I2C communication.SDA: Serial Data Line for I2C communication.XSHUT: Shutdown pin to control the sensor's power state.GPIO1 (optional): Interrupt output for signaling specific events.Package Includes:1 x GY-53 VL53L0X Laser ToF Flight Time Ranging Sensor Module1 x header pins

INR 181 · In stock
