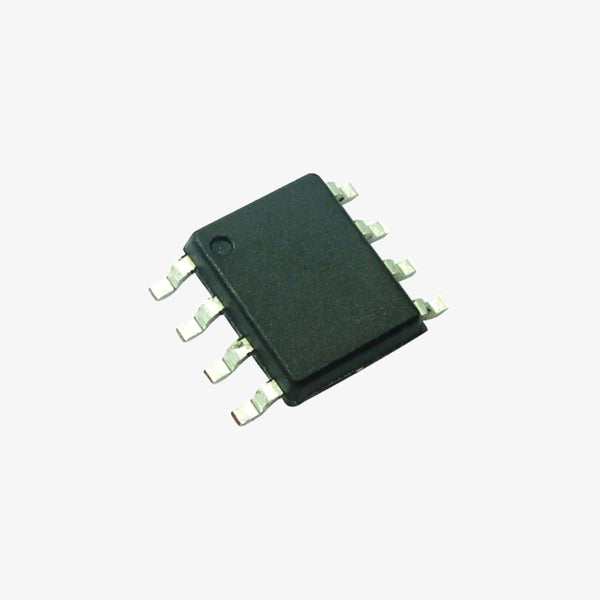

L6565 Quasi-Resonant SMPS Controller IC (ST) - SOP-8 SMD Package

The L6565 is a high-performance quasi-resonant switch-mode power supply (SMPS) controller IC designed for efficient power conversion. It provides advanced features for regulating and controlling power supplies, ensuring high efficiency and reliability. The L6565 is housed in a SOP-8 SMD package, offering a compact solution for power management in various applications.Specifications:IC Type: Quasi-Resonant SMPS ControllerManufacturer: STMicroelectronicsPackage Type: SOP-8 SMDPackage Size: 8 PinsInput Voltage Range: 8 V to 16 VMaximum Switching Frequency: 100 kHzOperating Temperature Range: -40°C to +125°CPin Configuration:VCC: Supply VoltageGND: GroundCSN: Current Sense NegativeCSP: Current Sense PositiveCOMP: Compensation NetworkRT: Timing ResistorTQ: Quasi-Resonant Timing CapacitorOUT: Output DriverFeatures:Quasi-resonant operation for high efficiencyIntegrated current sensing and controlAdjustable switching frequencyBuilt-in overcurrent and thermal protectionCompact SOP-8 package for space-efficient designsApplications:Power supplies for electronic devicesDC-DC convertersAC-DC adaptersIndustrial power managementConsumer electronicsPackage Includes:1 x L6565 Quasi-Resonant SMPS Controller IC (ST) (SOP-8 SMD Package)Note: Product images are for illustrative purposes only and may differ from the actual product.

INR 50 · Out of stock
