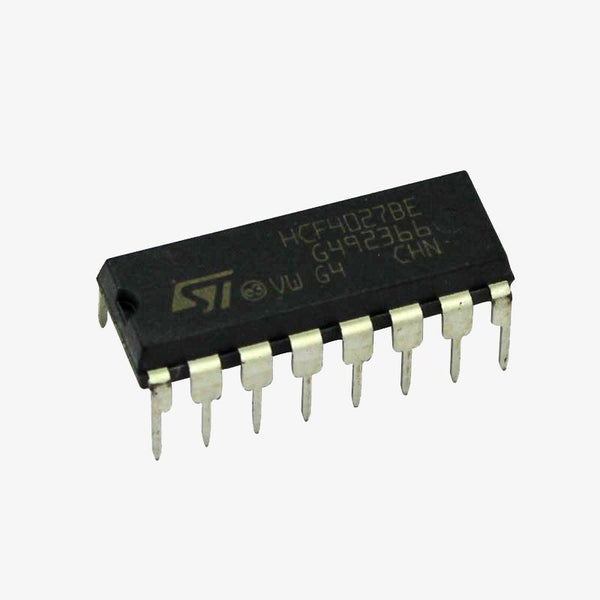

CD4027 Dual JK Flip Flop IC - 16 Pin DIP Package

The CD4027 is a Dual JK Flip Flop CMOS IC. It consist of two identical complementary-symmetry J-K master/slave flip-flops. Each flip-flop has its individual J, K, Set Reset, Clock input signals and buffered Q and Q signals are provided as outputs. The IC has an operating Voltage range from 3.0V to 15V and consumes about 50nW typically. Application areas include EEPROM circuits as a memory element, or to building a shift register or latching circuits. Product Description of CD4027 -Dual JK Flip Flop IC PIN DESCRIPTION Features of CD4027 -Dual JK Flip Flop ICWide supply voltage range: 3.0V to 15VLow power: 50nW (typ.)Medium speed operation: 12 MHz (typ.) with 10V supplySet-Reset CapabilityStatic Flip-Flop Operation - Retains State Indefinitely with Clock Level Either “High” or “Low”Maximum Input Current of 1µA at 18VOperating Temperature : -55 to 125 °CLead Temperature (Soldering): 265° CPackage Contents1× CD4027 Dual JK Flip Flop IC

INR 15 · In stock
