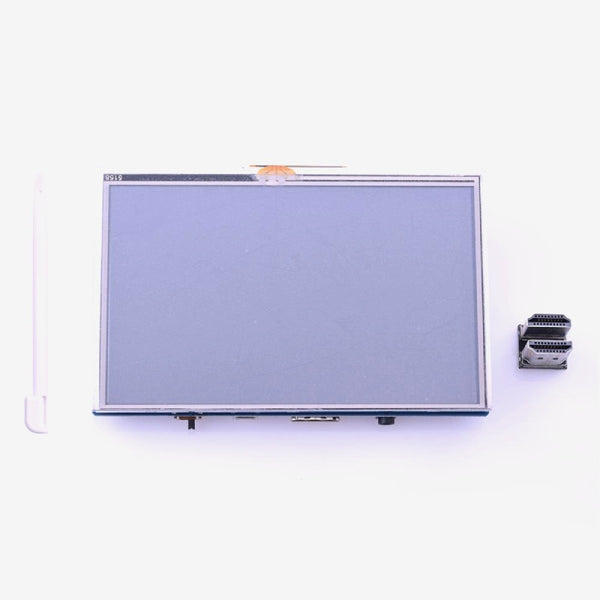

5 Inch HDMI Touch LCD for Raspberry Pi

The 5 inch HDMI Monitor for Raspberry Pi display is commonly used with Pi as a display unit. It comes with driver CD, mounting screws and stylus making it easy to interface with pi and provide a professional look.The 5 inch Raspberry Pi Screen has a resolution of 800x480 and works on 5V consuming about 235mA with the backlight on. The display signal is given through standard HDMI while the touchscreen works with SPI communication. Apart from Pi, the display can be used with any hardware like computers or tablets that support HDMI. Pin ConfigurationPin No.NameDescription1, 173.3V3.3V power input2, 45V5V power input3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24NCNot Connected6, 9, 14, 20, 25GNDGround Pins19TP_SISPI data input of Touch Panel21TP_SOSPI data output of Touch Panel22TP_IRQTouch Panel interrupt, low level while the Touch Panel detects touching23TP_SCKSPI clock of Touch Panel26TP_CSTouch Panel chip selection, low active Features and Specifications:800×480 high resolutionDirectly-pluggable into any revision of Raspberry Pi (only except the first generation Pi model B which requires an HDMI cable)The driver provided (works with custom Raspbian directly)HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)Backlight control to lower power consumptionHigh-quality immersion gold surface platingAdditional Resources:Interfacing with Raspberry Pi

Check price on store · In stock
