6S 20A 22.2V NMC BMS with Balance for Lithium Battery Pack - (TDT-9027)

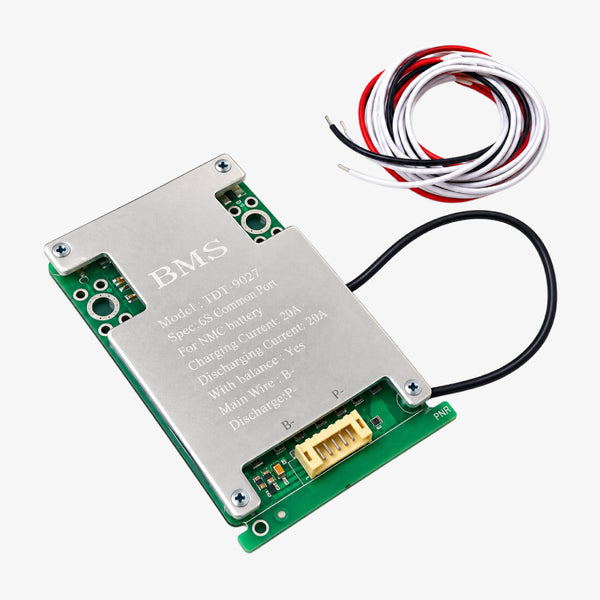

6S 20A 22.2V NMC BMS with Balance for Lithium Battery Pack - (TDT-9027) is a 6-series lithium-ion NMC Battery Management System designed for 22.2V nominal battery packs. The board supports a 6S common-port configuration with a 20A charging current and 20A discharging current. It provides cell-level protection and balancing functionality for NMC battery packs and uses separate battery negative (B-) and discharge negative (P-) connections as indicated on the product. The TDT-9027 family is associated with overcharge, over-discharge, over-current, short-circuit, and temperature protection functions, with the documented TDT-9027 design using passive cell equalization.6S 20A 22.2V BMS with Active Balancer for Lithium Battery Pack DatasheetFeatures:TDT-9027 NMC Battery Management SystemDesigned for 6S NMC lithium-ion battery packs22.2V nominal battery-pack configuration20A charging current20A discharging currentCommon-port configurationIntegrated cell balancing functionPassive cell equalizationOvercharge protectionOver-discharge protectionOver-current protectionShort-circuit protectionTemperature protection with temperature sensorDesigned for NMC lithium-ion cellsSuitable for 6-series 18650 and compatible NMC cell packsHeavy-duty metal-covered PCB constructionBattery negative connection through B-Discharge negative connection through P-Balance wiring harness includedSuitable for high-current battery-pack applicationsSpecifications:SpecificationValueManufacturerTDTModel NumberTDT-9027Product TypeNMC Battery Management SystemBattery ChemistryNMC Lithium-IonBattery Configuration6SNumber of Cells in Series6Nominal Battery Voltage22.2VMaximum Charge Voltage25.2VCharging Current20ADischarging Current20APort ConfigurationCommon PortBalancingYesBalancing TypePassive EqualizationOvercharge ProtectionYesOver-Discharge ProtectionYesOver-Current ProtectionYesShort-Circuit ProtectionYesTemperature ProtectionYesTemperature SensorIncludedMain Battery NegativeB-Discharge NegativeP-Battery TypeRechargeable NMC Lithium-IonCell Arrangement6 Cells in SeriesConnection TypeWired Balance ConnectorPCB ConstructionFR-4MountingPCB ModuleApplication6S NMC Battery Pack ProtectionPin Configuration:ConnectionFunctionB-Battery Pack NegativeP-Discharge Negative / Common Port NegativeBalance ConnectorCell Voltage Monitoring and Balancing ConnectionsAlso Check These Products:-4S 6Amps LFP Battery Protection BMS Module for 3.2V LFP cells1S 6A LFP 32650 Lithium Battery Protection Board 3.2V BMS3S 10A Lithium Battery Protection BMS Module for 11.1V NMC cells3S 10A Lithium Battery Protection BMS Module for 3.7V NMC cells without Nickel StripPackage Includes:1 × 6S 20A 22.2V NMC BMS TDT-90271 × Balance Wire Harness1 × Temperature Sensor Cable

INR 565 · In stock
