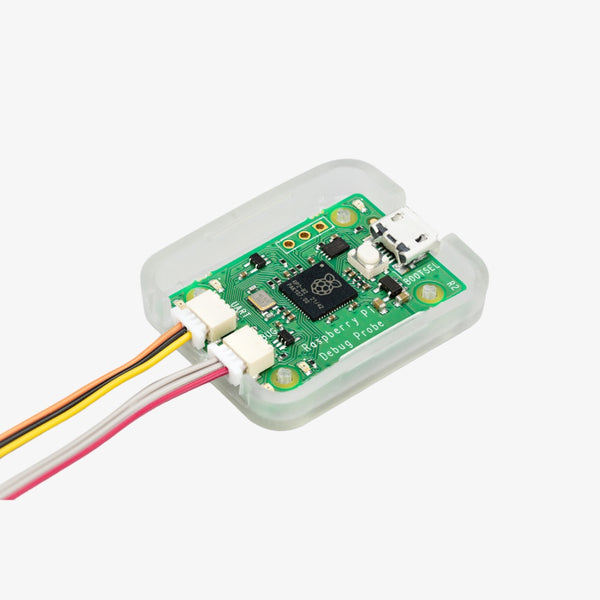

Raspberry Pi Debug Probe

The Raspberry Pi Debug Probe is a USB device that provides both a UART serial port and a standard Arm Serial Wire Debug (SWD) interface. The probe is designed for easy, solderless, plug-and-play debugging.While designed for use with Raspberry Pi products, the Debug Probe provides standard UART and CMSIS-DAP interfaces over USB, so it can also be used to debug any Arm-based microcontroller that provides an SWD port with 3V3 I/O, or even just as a USB-to-UART cable. It works with OpenOCD and other tools that support CMSIS-DAP. It has the following features:USB to ARM Serial Wire Debug (SWD) portUSB to UART bridgeCompatible with the CMSIS-DAP standardWorks with OpenOCD and other tools supporting CMSIS-DAPOpen source, easily upgradeable firmwareThe probe operates at 3.3V nominal I/O voltage.Browse our full Raspberry Pi Collection including development boards, camera modules, displays, power supplies, HATs, and accessories designed for IoT, automation, robotics, and embedded systems.
