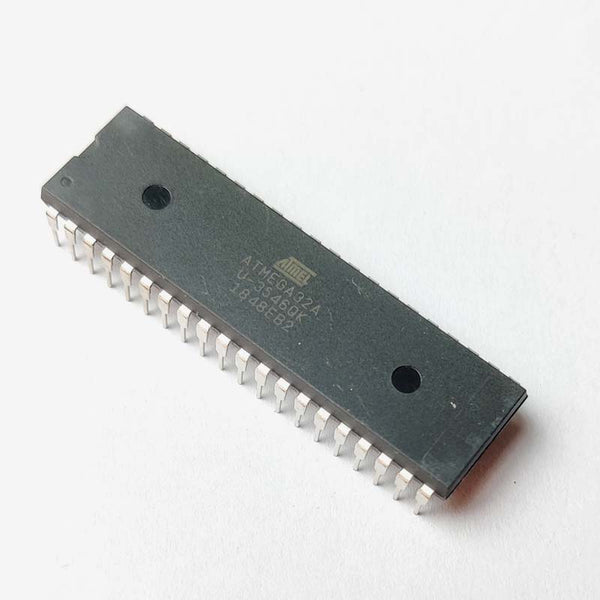

ATmega32A Microcontroller IC - 40 Pin DIP Package

ATMEGA32A is featuring 32KB self-programming flash program memory in it’s 40 pin, 8-bit AVR RISC-based microcontroller from Atmel. It is a low power yet high performance microcontroller that has 2KB SRAM, 1KB EEPROM, 8 channel 10-bit Analog to Digital converter. For the debugging and programming support, JTAG interface and an on-chip-debugger is also available in this microcontroller unit. The device achieves 16 MIPS throughput at 16 MHz at 2.7-5.5V operation.2.7V-5.5V opens up a wide range of input voltage range that is suitable for both 3.3V and 5.5V operations. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, allowing you to optimize power consumption versus processing speed. Additional peripheral supports are - 32 x 8 I/O registers, UART, I2C and SPI interface, PWM, Timers etc.Atmega32a pinout: Atmega32a features, specificationFeature: -Operating Voltage: 2.7V to 5VAdvanced RISC Architecture.32 x 8 General Purpose Working Registers.Fully Static Operation.Up to 16 MIPS Throughput at 16 MHzOn-chip 2-cycle Multiplier.High Endurance Non-volatile Memory segments.32 Kbytes of In-System Self-programmable Flash program memory.1024 Bytes EEPROM.2 Kbyte Internal SRAM.Write/Erase Cycles: 10,000 Flash/100,000 EEPROM.Data retention: 20 years at 85°C/100 years at 25°C(1).Optional Boot Code Section with Independent Lock Bits.In-System Programming by On-chip Boot Program.True Read-While-Write Operation.Programming Lock for Software Security.Extensive On-chip Debug Support.8 Single-ended Channels.Byte-oriented Two-wire Serial Interface.Programmable Serial USART.Master/Slave SPI Serial Interface.Programmable Watchdog Timer with Separate On-chip Oscillator. Specification: -Operating voltage : 4.5V to 5VArchitecture : RISC Advance Registers : 32 × 8 General purposeOperation : Full StaticFlash program : 32 KbytesEEPROM : 1024 BytesSRAM : 2 KbytesWrite/Erase Cycles : 10,000Data retention : 20 years at 85°C/100 years at 25°C(1).Channels : Single-endedAtmega32a Applications:Data processingIO based microcontroller operationsSensor’s integrationsControl systemMotor controlAtmega32a Dimension and footprint: Example Projects on Atmega32a:Biometric Attendance system using Atmega32Additional Resources:Atmega32a Datasheet Package Contains1x Atmega32a

INR 242 · In stock
