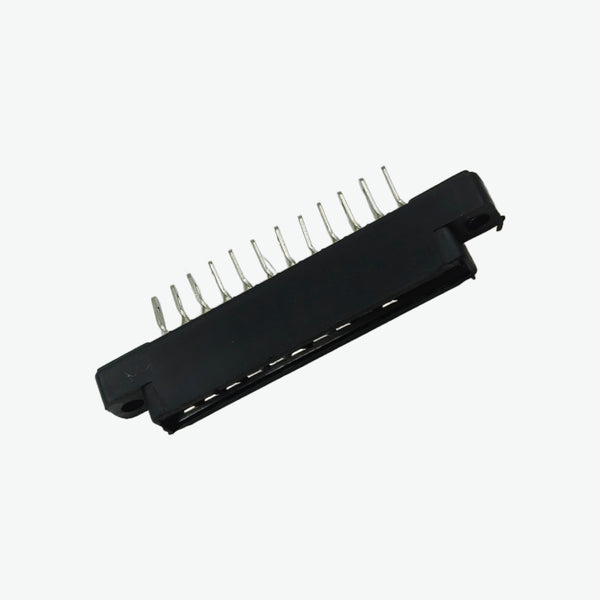

12 Contact Card Edge Connector (Black) - 3.96mm Pitch 5A 300V

The 12 Contact Card Edge Connector (PCx12 Series) features Bifurcated Double Bellows (BBT) contacts for secure and reliable PCB connections. Designed for high-density circuits, it combines robust mechanical durability with excellent electrical performance. Its PA66 insulator and gold- or tin-plated phosphor bronze contacts ensure long-lasting reliability, making it ideal for industrial electronics, communication modules, and control systems.Features:12-contact card edge connector for multi-point PCB connectionsBifurcated Double Bellows (BBT) contact type for secure, stable connectivitySolder or PMT terminals for flexible PCB mounting options3.96mm (0.156 inch) pitch for precise alignment and compact layoutsDurable design rated for 500 mating cyclesIdeal for industrial electronics, communication modules, and PCB assembliesSpecifications:Number of Contacts: 12Contact Type: Bifurcated Double Bellows (BBT)Colour: BlackContact Terminal: Solder / PMTContact Pitch: 3.96mm (0.156 inch)Durability: 500 cyclesInsulator Material: PA66Contact Material: Phosphor Bronze (PB)Contact Finish: Gold / TinTemperature Range: -40°C to +125°CWorking Voltage: 300V rmsCurrent Rating: 5AContact Resistance: ≤10 mΩInsulation Resistance: ≥1000 MΩVoltage Proof: 1800V rmsPackage Includes:12 Contact Card Edge Connector(Black) - 3.96mm Pitch

INR 20 · In stock
