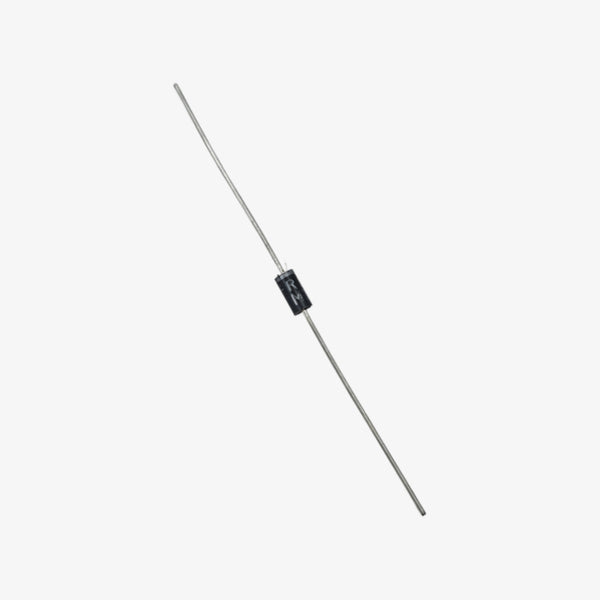

RL107 General Purpose Silicon Rectifier Diode 1A

The RL107 General Purpose Silicon Rectifier Diode 1A is built for stable AC to DC rectification in standard power applications. Its molded structure ensures dependable operation across varied loads. Ideal for chargers, adapters, and low-frequency rectifier circuits.CLICK HERE FOR DATASHEETFeatures:Provides reliable rectification with strong surge handlingMaintains stable performance with low reverse leakageBuilt with a sturdy A-405 molded plastic bodyUses Pb-Free materials with UL 94V-0 rated constructionSpecifications:Maximum Peak Reverse Voltage (VRRM): 1000 VMaximum RMS Voltage (VRMS): 700 VAverage Forward Current (IAV): 1.0 APeak Forward Surge Current (IFSM): 30 AForward Voltage at 1A (VF): 1.1 VReverse Current (IR): 5 µA at 25°C, 50 µA at 100°CJunction Capacitance: 15 pFThermal Resistance (RθJA): 50 °C/WOperating Temperature: -65 to +175 °CPackage Includes:1 × RL107 General Purpose Silicon Rectifier Diode 1A

INR 2 · In stock
