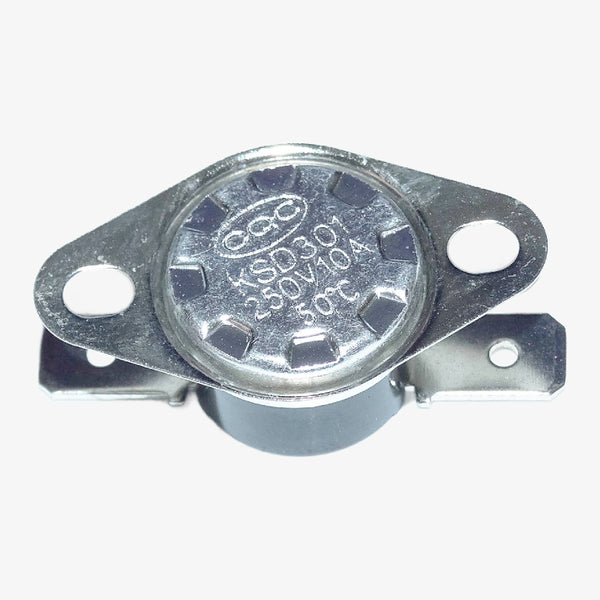

Bakelite KSD301 50ºC Degree Normally Closed Temperature Controlled Switch Thermostat - 10A 250V

The 250V 10A Bakelite KSD301 Temperature Controlled Switch is a bimetal-disc thermostat designed for accurate temperature control and protection in electrical and heating systems. This 50ºC Normally Closed (NC) version keeps the circuit open under normal temperatures and closes only when the temperature reaches 50ºC. After cooling below the rated temperature, it automatically returns to its original open state. The Bakelite insulated housing ensures electrical safety and maintains stable thermal response, making it suitable for low-temperature activation systems, heaters, fans, and controlled temperature triggers.Features:50ºC Normally Closed (NC) temperature activationAutomatically resets when the temperature fallsBakelite insulated housing for enhanced electrical protectionRated for 10A at 250V ACReliable bimetal sensing disc with fast thermal responseLong operating life with stable switching characteristicsSuitable for low-temperature activation and protection circuitsSpecifications:Model: KSD301Type: Temperature Controlled Thermostat SwitchTemperature Rating: 50ºC (NC – Normally Closed)Operation: Closes at 50ºC, opens on coolingContact Type: Normally ClosedHousing Material: Bakelite (insulated)Rated Current: 10ARated Voltage: 250V ACTolerance: ±5°C (typical)Contact Resistance: ≤50mΩInsulation Resistance: ≥100MΩReset Type: Automatic resetTerminal Style: 2-pin terminalsMounting Type: Flange/plate mountApplications: Heaters, fans, thermal triggers, appliances, temperature-controlled lighting, low-temp activation systemsPackage Includes:1 × Bakelite KSD301 50ºC Normally Closed Temperature Controlled Switch Thermostat – (10A 250V)

INR 26 · In stock
