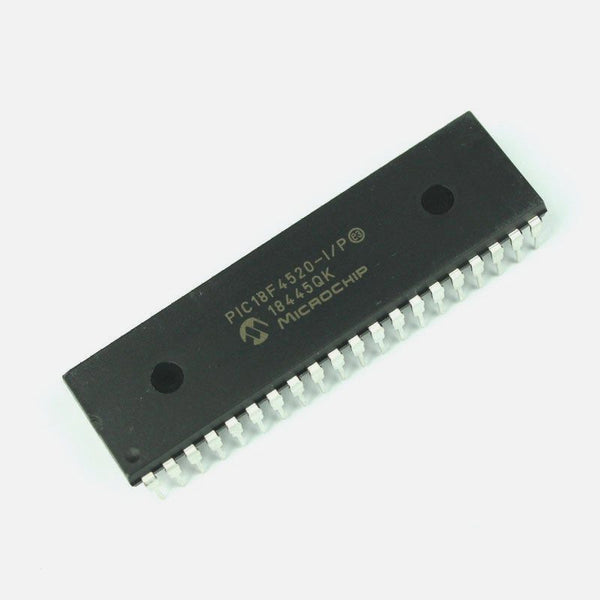

PIC18F4520 8-bit PIC Microcontroller IC - 40 Pin DIP Package

If you are looking for a 40-Pin microcontroller with lots of peripheral support as well as I/O pin counts then the PIC81F4520 is a perfect choice. It has SPI, I2C, ADC, PWM and all. 16Kbit low power high-performance CMOS Microcontroller based on the Atmel AVR enhanced RISC architecture. With 1536 Bytes of data memory and 256 bytes of EEPROM. It supports 13 channels of 10-bit Analog to Digital converter, 4 Timers, MSSP and USART.For debugging and Programming, it has a JTAG interface for on-chip-debug. Maximum operating frequency is 40 Mhz. It has Program Memory of 32768 Bytes and 16384 instructions.PIC18F4520 pinout: PIC18F4520 features, Specification:Features: High current sink-source 25 mA/ 25 mAThree External Interrupts Four Timer modules (Timer0 to Timer3) Up to 2 Capture/Compare/PWM (CCP) modules: - Capture is 16-bit, max. resolution 5.2 ns (TCY/16) - Compare is 16-bit, max. resolution 83.3 ns (TCY) - PWM output: PWM resolution is 1 to 10-bit Enhanced Capture/Compare/PWM (ECCP) module: - Multiple output modes - Selectable polarity - Programmable dead time - Auto-shutdown and auto-restart Enhanced USART module: LIN bus support Master Synchronous Serial Port (MSSP) module Supporting 3-Wire SPI (all 4 modes) and I2C™ Master and Slave modes 10-Bit, Up to 13-Channel Analog-to-Digital Converter (A/D) module with Programmable Acquisition Time Dual Analog Comparators with Input MultiplexingSpecification:Program Memory Type : FlashProgram Memory Size (KB) : 32CPU Speed (MIPS/DMIPS) : 10SRAM (B) : 1536Temperature Range (°C) : -40 to 125Operating Voltage Range (V) : 2 to 5.5Pin Count : 40Timers : 1x 8-bit, 3 x 16-bitADC Input : 13 ch, 10-bitCapture/Compare/PWM Peripherals : 1 CCP, 1 ECCPDigital Communication Peripherals : 1-UART, 1-SPI, 1-I2CData EEPROM/HEF (bytes) : 256PIC18F4520 Applications:Data ProcessingSensor IntegrationData retentionCommunication between PC and MicrocontrollerSmall Industrial applications.PIC18F4520 Dimension and footprint:Example Projects on PIC18F4520:PIC to PIC Communication using RF ModuleAdditional Resources:PIC18F4520 Datasheet Package Contains1x PIC18F4520

INR 416 · In stock
