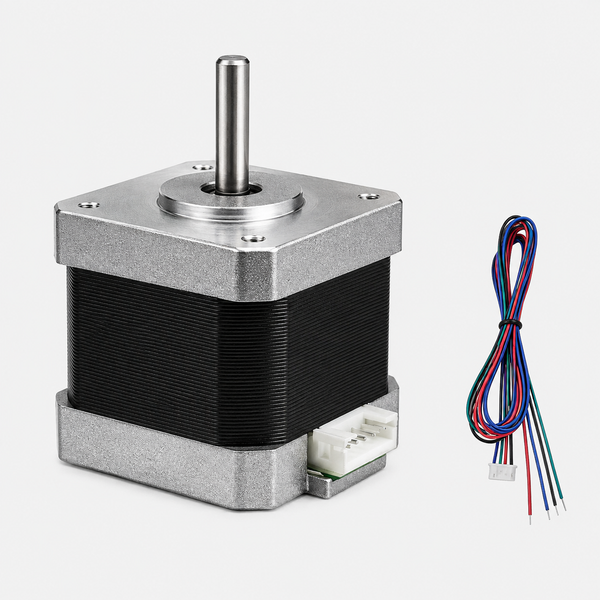

NEMA17 4.2kgcm Stepper Motor-D Type Shaft

NEMA17 4.2kg.cm Stepper Motor - D Type Shaft is a high-performance 2-phase bipolar stepper motor designed for precision motion control applications. Featuring a NEMA 17 frame size, 1.8° step angle, and a D-type output shaft, it delivers smooth, accurate positioning with high holding torque. It is widely used in 3D printers, CNC machines, laser engravers, robotics, automation equipment, and DIY motion control projects.Features:NEMA 17 standard frame size for universal compatibility.High holding torque of 4.2kg.cm for reliable performance.1.8° step angle for precise positioning.D-type shaft for secure coupling with pulleys and gears.2-phase bipolar hybrid stepper motor.Low vibration and smooth operation.High-quality bearings for long service life.Suitable for continuous-duty operation.Easy integration with popular stepper motor drivers.Ideal for 3D printers, CNC machines, robotics, and automation projects.Specifications:ParameterValueProduct TypeHybrid Stepper MotorModelFrame SizeNEMA 17 (42 × 42mm)Step Angle1.8° ±5%Number of Phases2Holding Torque4.2kg.cm (0.42N·m)Rated Voltage4V DCRated Current1.2A/PhasePhase Resistance3.3Ω ±10%Phase Inductance3.2mH ±20%Rotor Inertia54g·cm²Shaft TypeD-Type ShaftShaft Diameter5mmShaft Length22mmMotor Body Length40mmLead Wire LengthApproximately 300mmConnector Type4-Pin JSTInsulation ClassClass B (130°C)Insulation Resistance100MΩ Min. @ 500V DCDielectric Strength500V AC for 1 MinuteOperating Temperature-20°C to +50°CWeightApproximately 280gCompatible DriversA4988, DRV8825, TMC2208, TMC2209, TB6600, DM542 and other bipolar stepper driversApplications3D Printers, CNC Machines, Laser Engravers, Robotics, Camera Sliders, Plotters, Automation Equipment, DIY Motion ControlAlso Check These Out:5010 750KV High Torque Brushless Motor for DroneRS2205 2300KV Brushless High Speed DC Motor for Drone (CW)RS2205 2300KV Brushless High Speed DC Motor for Drone (CCW)RS2205 2700KV Brushless High Speed DC Motor for Drone (CCW)Package Includes:1 × NEMA17 4.2kg.cm Stepper Motor - D Type Shaft

INR 605 · Out of stock
