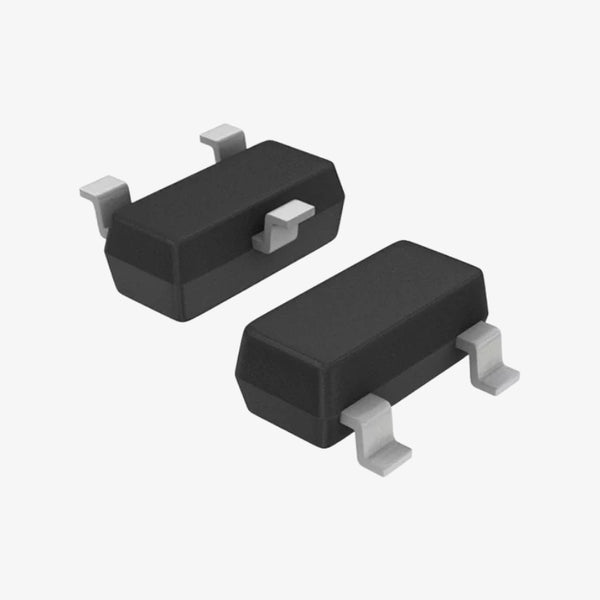

AO3415 P-Channel MOSFET 20V 4A - SOT-23 SMD Package

The AO3415 is a P-channel MOSFET designed for low-voltage, high-efficiency switching applications. With a drain-source voltage rating of 20V and a continuous drain current of 4A, it offers excellent switching performance in a compact SOT-23 surface-mount package. It is commonly used in power management circuits, load switches, and battery-powered devices.Features of AO3415 P-Channel MOSFET:P-channel enhancement mode MOSFETLow on-resistance for efficient switchingHigh current handling capability of up to 4AIdeal for use in load switches and power management applicationsCompact SOT-23 package for space-constrained designsSpecifications of AO3415 P-Channel MOSFET:Model: AO3415Type: P-Channel Power MOSFETDrain-Source Voltage (VDS): -20VContinuous Drain Current (ID): -4AGate Threshold Voltage (VGS(th)): -0.5V to -1.4VRDS(on): 0.045Ω (max) at VGS = -4.5VTotal Gate Charge (Qg): ~13nCPackage: SOT-23 – SMDPower Dissipation: 1.5WOperating Temperature Range: -55°C to +150°CPackage Includes:1 × AO3415 P-Channel MOSFET 20V 4A – SOT-23 Package

INR 4 · In stock
