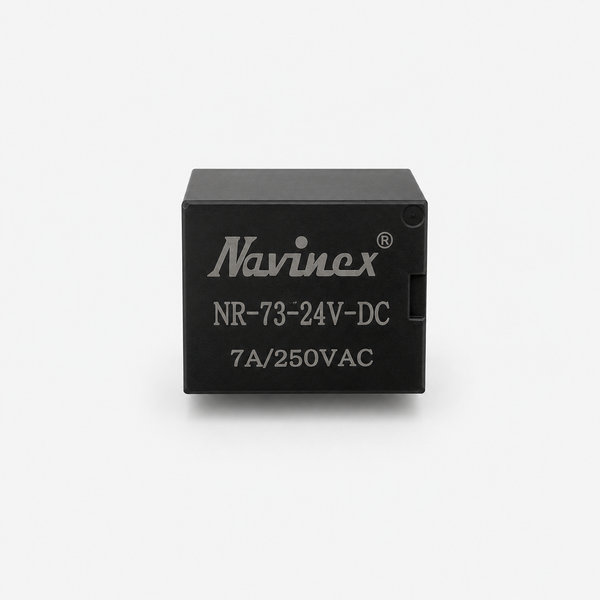

SRD 24V DC Relay Cube

Relays are the most commonly used switching devices used in electronics. It can be used to switch high current loads easily unlike transistors which are limited by the maximum current that can flow through them and also can’t switch AC loads. Relays can switch both AC and DC loads. It is an Electromagnetic switch, when the coil inside is energised with a small current, it can switch ON or OFF the high current circuit. They can be used in Home automation to switch ON or OFF the appliances, in Electronic circuits to perform switching operations, in safety circuits to disconnect or connect the heavy loads in case of any dangerous situation, in Automobile applications like turning on windscreen wipers, power windows fuel pump, cooling fan etc.SpecificationsTrigger Voltage (Voltage across coil): 24V DCTrigger Current (Nominal current): 70mAMaximum AC load current: 10A@250/125V ACMaximum DC load current: 10A@30/28V DCCompact 5-pin configuration with plastic mouldingOperating time: 10msec Release time: 5msec Product DescriptionTo use this relay module first you have to decide whether you want to connect or disconnect your load when relay is operated. Connect the load across Common and NC terminal if you want to disconnect the load when relay is operated or across Common and NO terminal if you want to connect the load when relay is operated. As the coil trigger voltage is 5V, you can connect it to any GPIO pin of 5V operating Arduino like UNO or MEGA or you can use any battery above 5V to operate the relay too.Applications:Mainly used in switching circuits.Home Automation projects to switch AC loadsIn Controlling Heavy loads at a pre-determined time/conditionSafety circuits to disconnect the load from supply in event of failureUsed in Automobiles electronics for controlling indicators, glass motors etc.Note: Appearance might be difference from the picture shown.Package Contents1× 24V DC Relay Cube
