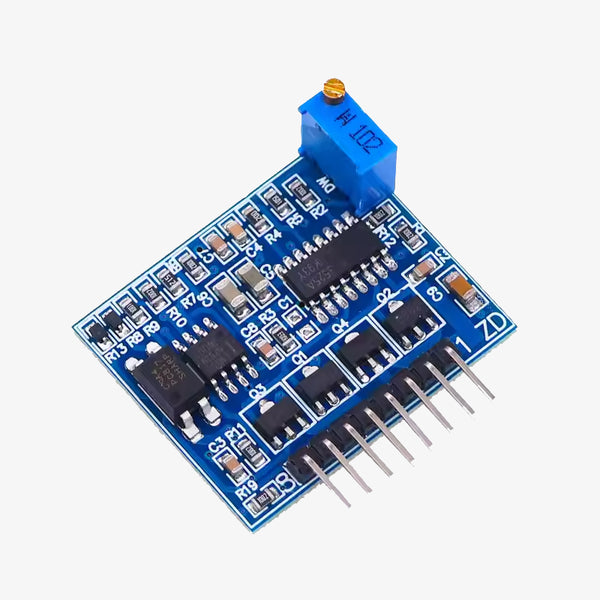

SG3525 LM358 Inverter Drive Plate 12V-24V Mixer Preamp Drive Module

The SG3525 LM358 Inverter Drive Plate 12V–24V Mixer Preamp Drive Module is a powerful dual-function driver circuit designed for use in inverter and power amplifier applications. Powered by 12V to 24V DC, it utilizes the SG3525 PWM controller and LM358 operational amplifier for stable switching and pre-amplification. Ideal for custom inverter circuits, audio projects, and motor drive control setups.Features of SG3525 LM358 Inverter Drive Plate 12V–24V Mixer Preamp Drive Module:Based on SG3525 PWM IC and LM358 op-ampSupports 12V to 24V DC input for flexible useFunctions as both a PWM inverter driver and preamplifierCan drive MOSFETs or IGBTs in inverter circuitsSuitable for inverters, small UPS systems, and audio signal pre-processingSpecifications:Input Voltage: 12V–24V DCController Current: 1A MaxICs Used: SG3525 PWM Controller, LM358 Dual Op-AmpOutput: PWM signal for driving MOSFETs / IGBTsApplication: Inverter circuits, motor drivers, audio preamps, UPS designPackage Includes:1 × SG3525 LM358 Inverter Drive Plate 12V–24V Mixer Preamp Drive Module

INR 160 · In stock
