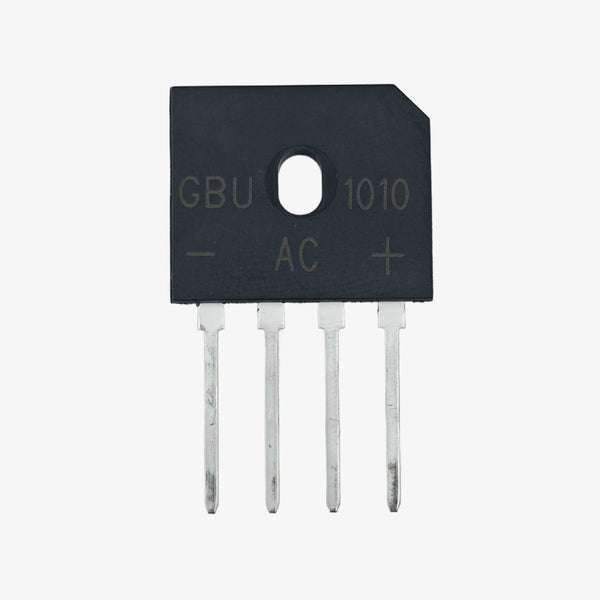

GBU1010 10A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

The GBU1010 Bridge Rectifier is a robust through-hole rectifier designed for AC to DC conversion in medium to high-power circuits. Its glass-passivated die and solid molded case ensure strong surge handling and thermal durability. Perfect for power supplies, converters, and motor control circuits needing reliable rectification.CLICK HERE FOR DATASHEETFeatures:Low forward voltage drop for better efficiencyHigh surge current capability up to 220AGlass-passivated die for long-term reliabilityUL94V-0 flame-retardant molded plastic bodyLeaded design suitable for any mounting positionSpecifications:Average Forward Current (IF(AV)): 10APeak Repetitive Reverse Voltage (VRRM): 1000VWorking Peak Reverse Voltage (VRWM): 1000VDC Blocking Voltage (VR): 1000VRMS Reverse Voltage (VR(RMS)): 700VPeak Forward Surge Current (IFSM): 220A (8.3ms half-sine wave)Forward Voltage (VF): 1.1V at IF = 1.0AReverse Current (IR)at 25°C: 10µA Reverse Current (IR)at 125°C: 500µATypical Junction Capacitance (Cj): 70pFThermal Resistance (RθJA / RθJL): 20°C/W / 4°C/WOperating Junction Temperature (TJ): -65°C to +150°CStorage Temperature (TSTG): -65°C to +150°CPackage Includes:1 × GBU1010 10A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

INR 25 · In stock
