TB6612FNG Dual DC Motor Driver Module

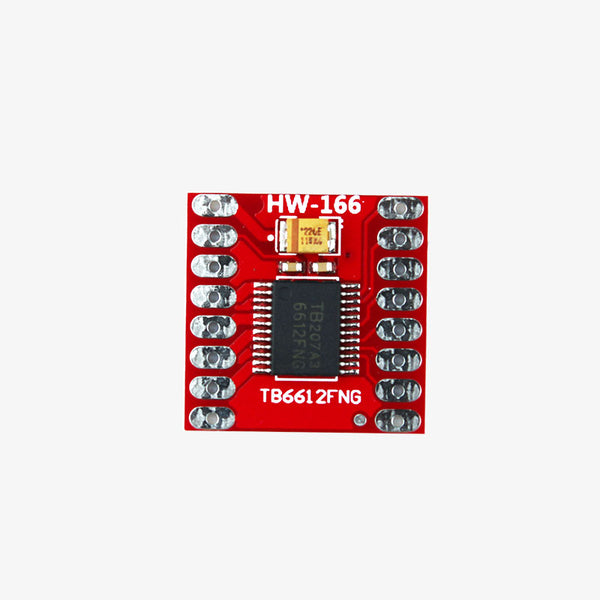

The Motor Driver TB6612FNG Module motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes – CW, CCW, short-brake, and stop.The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1″ pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other.Features:Output current: Iout=1.2A(average) / 3.2A (peak)Standby control to save powerCW/CCW/short break/stop motor control modesBuilt-in thermal shutdown circuit and a low voltage detecting circuitAll pins of the TB6612FNG broken out to 0.1″ spaced pinsFiltering capacitors on both supply lines.Specifications:Driver ModelTB6612FNGOperating Voltage(VDC)15Peak Current (A)3.2Continuous Current (A)1.2No. of Channels1Dimensions in mm (LxWxH)30 x 20 x 10 Example Projects on TB6612FNG Motor Driver:TB6612FNG Interfacing with ArduinoAdditional Resources:TB6612FNG Motor Driver Datasheet Package Contains1x TB6612FNG Motor Driver
