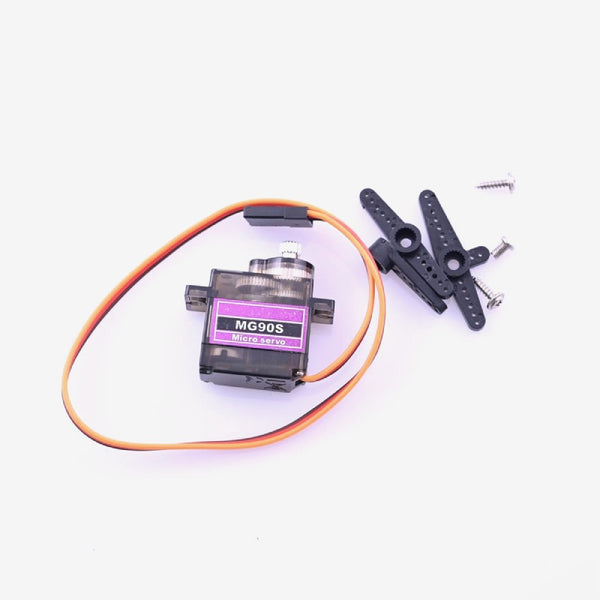

Tower Pro MG90S Servo Motor with Metal Gear

Servo motors are essential due to high force generations. The MG90S is a metal gear servo motor commonly used in RC applications like RC cars, RC boats, RC helicopters, Airplane etc. It is easy to use and very simple to fit in the enclosure due to square body shape. It has a stall torque of 1.8kg/cm when operating on 4.8V and about 2.2kg/cm when operating on 6V. Thus changing the voltage level, the torque can be adjusted. Since it supports voltage from 4.8V to 6V, operate the motor within this voltage level and do not cross the voltage beyond the maximum rated 6V. It weighs about 13.4 grams only making this a lightweight servo motor that can be used in different applications where the weight is a crucial factor. The metal gear provides ruggedness for the motor and increases the life time of the motor since the gears will not wear out.Important: Please note that these are not Full Metal Gear Servo motors, only the top gear comes in metal.MG90S Servo Motor Quick Features and Specification:Features :-Accurate and fast positioning Instant control responseConstant torque during the servo travel rangeProper holding power useful for different applications Specification:-Model : MG90SWeight(gm) : 13.4Operating Voltage (VDC) : 4.8 ~ 6.6Operating Speed @4.8V : 0.10sec/60°Operating Speed @6.6V : 0.08sec/60°Stall Torque @ 4.8V (Kg-Cm) : 1.8Stall Torque @6.6V (Kg-Cm) : 2.2Operating Temperature (°C) : 0 to 55Dead Band Width ( μs) : 1Rotational Degree : 180ºServo Plug : JRCable Length (cm) : 25Length (mm) : 12.4Width (mm) : 22.8Height (mm) : 32.5 MG90S Applications:RC CarsRC CoptersSmall DronesRC BoatsRoboticsMG90S Dimension and footprint:Additional Resources:MG90S Datasheet

INR 124 · Out of stock
