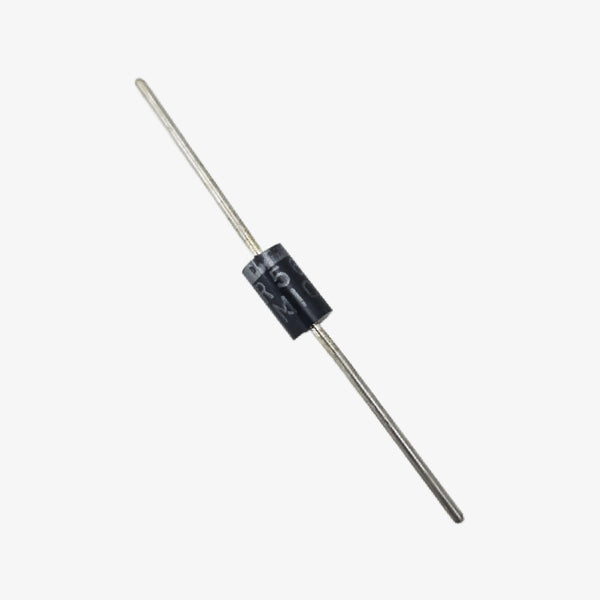

SR560 Schottky Barrier Rectifier Diode 5A

The SR560 Schottky Rectifier Diode 5A is designed for efficient low-loss AC to DC rectification with high current capability. Its Schottky barrier construction ensures extremely low forward voltage drop and fast switching characteristics, making it ideal for power supplies, chargers, and general high-efficiency rectification applications.CLICK HERE FOR DATASHEETFeatures:Low forward voltage drop for improved efficiencyHigh current handling capability for demanding loadsHigh surge current tolerance for robust operationColor band on cathode for easy polarity identificationSpecifications:Maximum Repetitive Peak Reverse Voltage (VRRM): 60 VMaximum RMS Voltage (VRMS): 42 VMaximum DC Blocking Voltage (VDC): 60 VMaximum Average Forward Rectified Current (IF(AV)): 5.0 APeak Forward Surge Current (IFSM): 150 AForward Voltage (VF) at 5 A: 0.70 VPeak Reverse Current (IR) at 25°C: 0.5 mAPeak Reverse Current (IR) at 100°C: 20 mATypical Junction Capacitance (CJ): 400 pFThermal Resistance Junction to Ambient (RθJA): 25 °C/WOperating Temperature Range (TJ): -65°C to +125°CStorage Temperature Range (TSTG): -65°C to +125°CPackage Includes:1 × SR560 Schottky Rectifier Diode 5A

INR 11 · In stock
