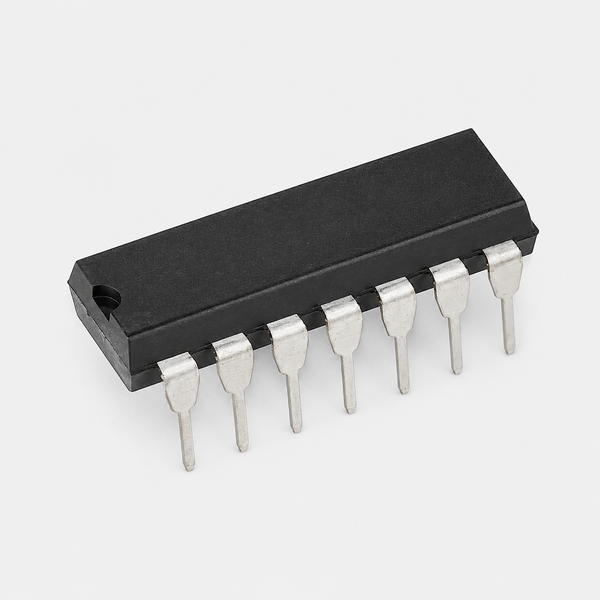

MC3403 Quad Low-Power Operational Amplifier IC - DIP-14 Package

MC3403 Quad Low-Power Operational Amplifier IC - DIP-14 Package is a versatile quad operational amplifier featuring four independent low-power op-amps in a single package. It is designed for single-supply or dual-supply operation and offers low power consumption, a wide input common-mode voltage range, and stable performance. The MC3403 is widely used in signal conditioning, sensor interfaces, active filters, voltage comparators, industrial control systems, and general-purpose analog circuits.Features:Quad Low-Power Operational AmplifierFour Independent Op-Amps in One PackageSingle or Dual Supply OperationLow Power ConsumptionWide Input Common-Mode Voltage RangeHigh Voltage GainShort Circuit Protected OutputsWide Supply Voltage RangeUnity Gain StableTTL and CMOS Compatible ApplicationsDIP-14 Through-Hole PackageSuitable for Signal ConditioningIdeal for Sensor Interfaces, Active Filters & Control CircuitsRoHS CompliantSpecifications:ParameterValueProduct TypeQuad Operational Amplifier ICModelMC3403Number of Amplifiers4PackageDIP-14Supply Voltage3V to 36V (Single Supply), ±1.5V to ±18V (Dual Supply)Input Offset Voltage2mV (Typical)Input Bias Current45nA (Typical)Slew Rate0.6V/µs (Typical)Gain Bandwidth Product1MHz (Typical)Voltage Gain100dB (Typical)Output Current20mA (Typical)Operating Temperature0°C to +70°CMounting TypeThrough HoleApplicationsSignal Conditioning, Active Filters, Sensor Interfaces, Voltage Followers, Industrial Control, General Analog CircuitsRoHS ComplianceYes Pin Configuration:PinFunction1Output 12Inverting Input 1 (-)3Non-Inverting Input 1 (+)4VCC+5Non-Inverting Input 2 (+)6Inverting Input 2 (-)7Output 28Output 39Inverting Input 3 (-)10Non-Inverting Input 3 (+)11VCC- / GND12Non-Inverting Input 4 (+)13Inverting Input 4 (-)14Output 4 Also Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 x MC3403 Quad Low-Power Operational Amplifier IC - DIP-14 Package

INR 52 · In stock
